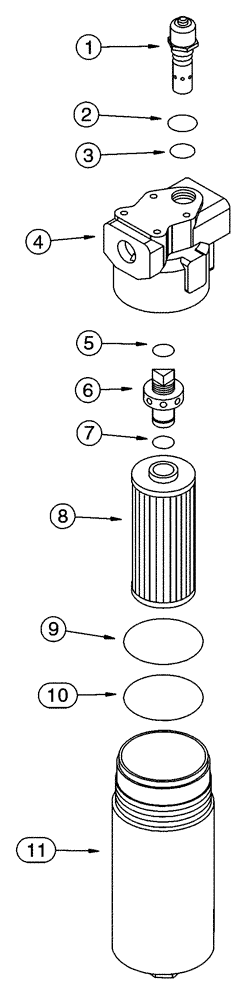

Запчасти Case 95XT (08-38) - FILTER ASSY, OIL (08) - HYDRAULICS

233442A1

FILTER ASSY

Consists Of 1 - 11

1шт.

1

244909A1

INDICATOR

1шт.

2

244910A1

RING

1шт.

3

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

4

244911A1

HEAD

1шт.

5

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

6

244912A1

VALVE

1шт.

7

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1шт.

8

244913A1

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

9

238-6235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 6, 90 Duro

1шт.

10

244914A1

RING

1шт.

11

244915A1

BOWL

1шт.
