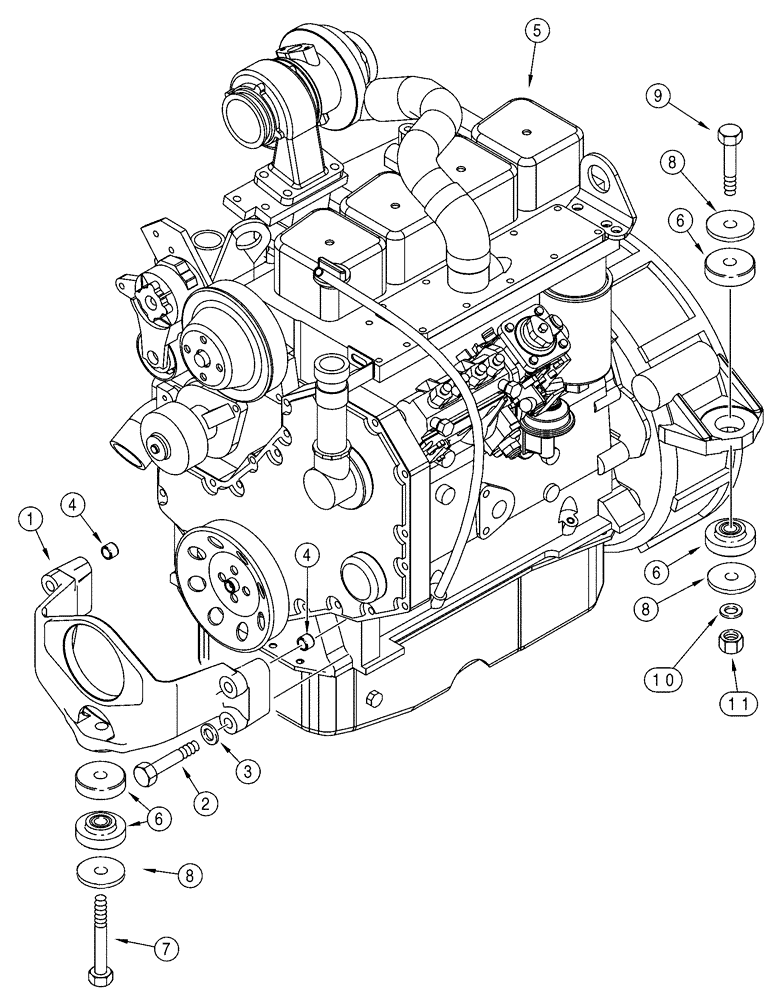

Запчасти Case 95XT (02-09) - ENGINE MOUNTING (02) - ENGINE

1

255473A1

HOLDER

1шт.

2

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

2шт.

5

REF

INSTRUCTION

Engine, See Page(s) 2-69, 2-77, 2-95

1шт.

6

R49482

RUBBER MOUNTING

6шт.

7

814-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

1шт.

8

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

5шт.

9

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

2шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

832-10416

NUT,M16 x 2, Cl 8

2шт.
