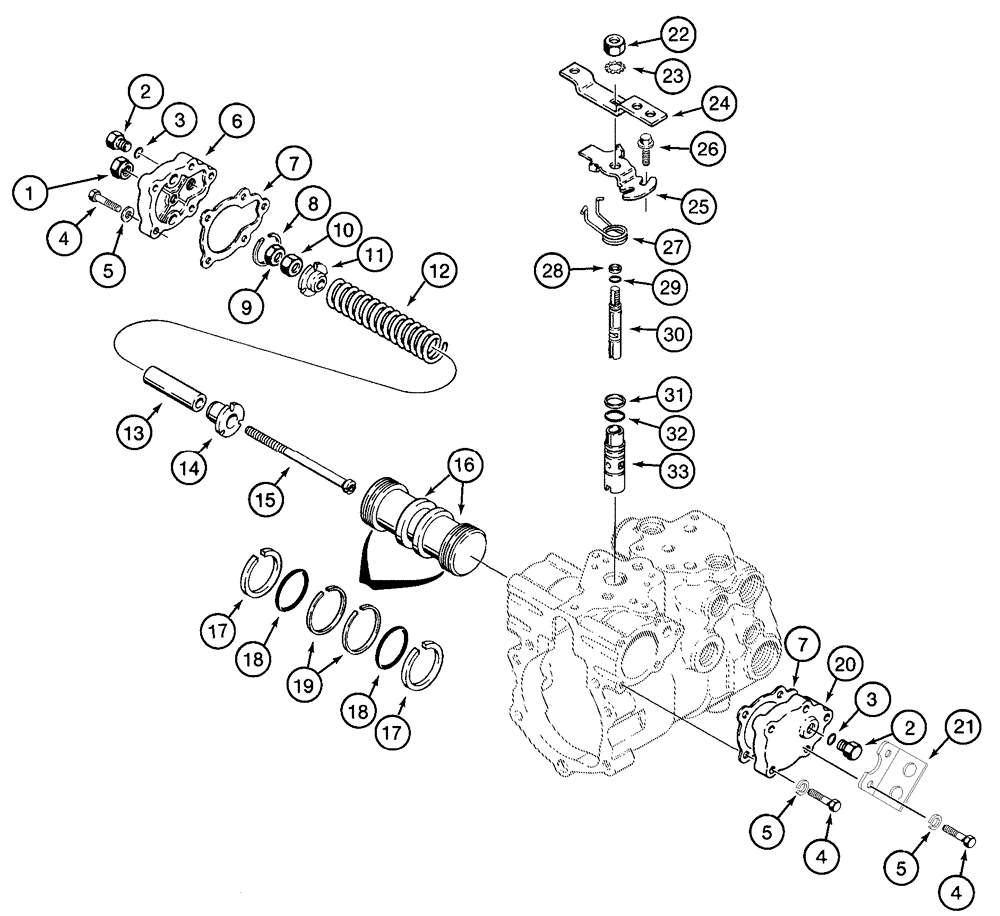

Запчасти Case 95XT (08-36) - PISTON PUMP, NEUTRAL START AND SERVO (08) - HYDRAULICS

237637A3

PUMP, HYDRAULIC,46 CC

Consists Of 1 - 29, Also Includes 8-129, 8-135, 8-137

1шт.

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

N13260

NUT,Inverted Lock

5/8 NF

1шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. 3

2шт.

4

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

1/4 x 1-1/4; 8, Includes 5

10шт.

5

NSS

NOT SOLD SEPARAT

Washer, Lock

1шт.

6

H436065

COVER

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

2шт.

8

N13255

RING

1шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

10

425-116

NUT,3/8" - 24, Gr 5

1шт.

11

N13241

GUIDE,1.292" OD

Inner

1шт.

12

N13226

SPRING

1шт.

13

N13242

SLEEVE

1шт.

14

N14666

GUIDE,1.292" OD

Outer

1шт.

15

244905A1

SCREW

1шт.

16

H435772

PISTON

1шт.

H673773

KIT

Consists Of 17, 18

1шт.

17

N14668

RING, PISTON

2шт.

18

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

19

NSS

NOT SOLD SEPARAT

Ring, Order 244908A1 (8-133)

2шт.

20

H436053

COVER

1шт.

21

244899A1

SUPPORT

1шт.

22

H436054

SPECIAL NUT,Lock, 5/16" - 18

1шт.

23

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

24

100713A1

LEVER

1шт.

25

N13250

BRACKET

1шт.

26

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

1шт.

27

N13248

SPRING,3/4" OD

1шт.

28

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Order 244908A1 (8-133)

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring, Order 244908A1 (8-133)

1шт.

30

H435769

SPOOL

1шт.

31

V39097

RING

Order 244908A1

1шт.

32

NSS

NOT SOLD SEPARAT

O-Ring, Order 244908A1

1шт.

33

110671A2

SLEEVE

Replaces N14477

1шт.

244908A1

GASKET KIT

Consists Of 3, 4, 10, 17 (8-129); 7, 17 - 19, 28, 29 (8-131); 31, 32 (8-133); 3, 4, 11 (8-135); 37 (8-137)

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
