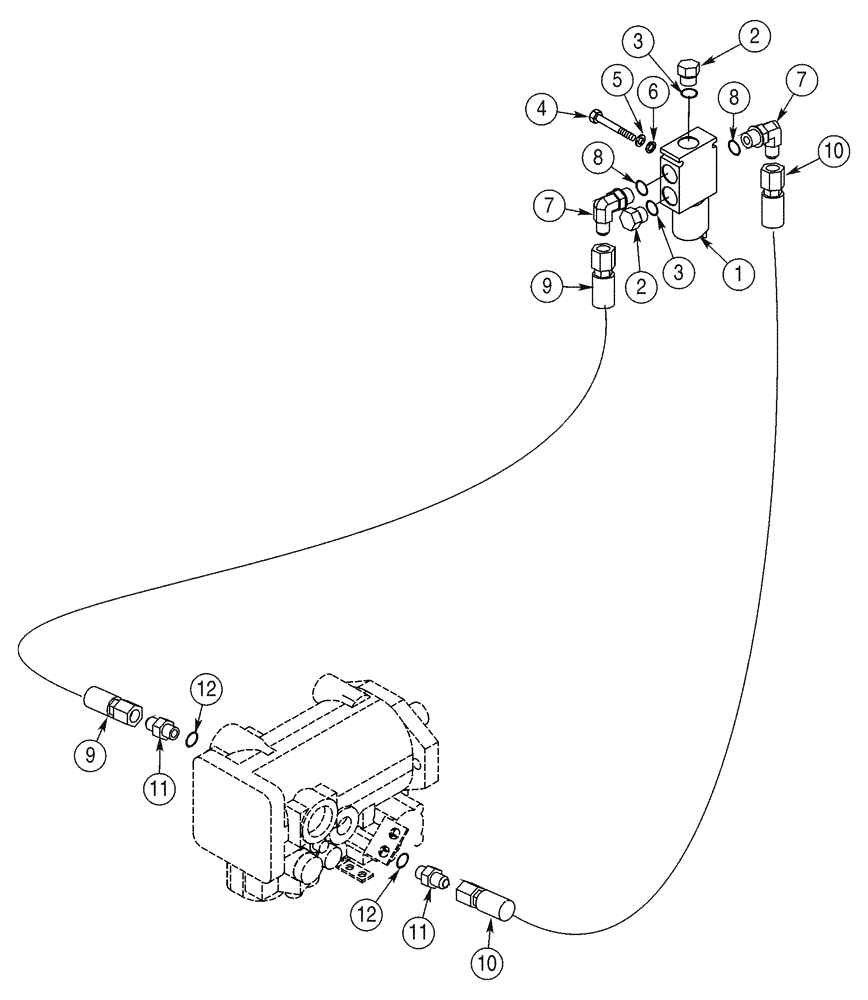

Запчасти Case 95XT (08-34) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON, SOLENOID (08) - HYDRAULICS

1

187505C91

VALVE

See Page 06-23

1шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. 3

2шт.

4

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 8

2шт.

9

431524A2

HOSE ASSY.

1600 mm (63 in)

1шт.

10

431523A2

HOSE ASSY.

1300 mm (51-3/16 in)

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 12

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
