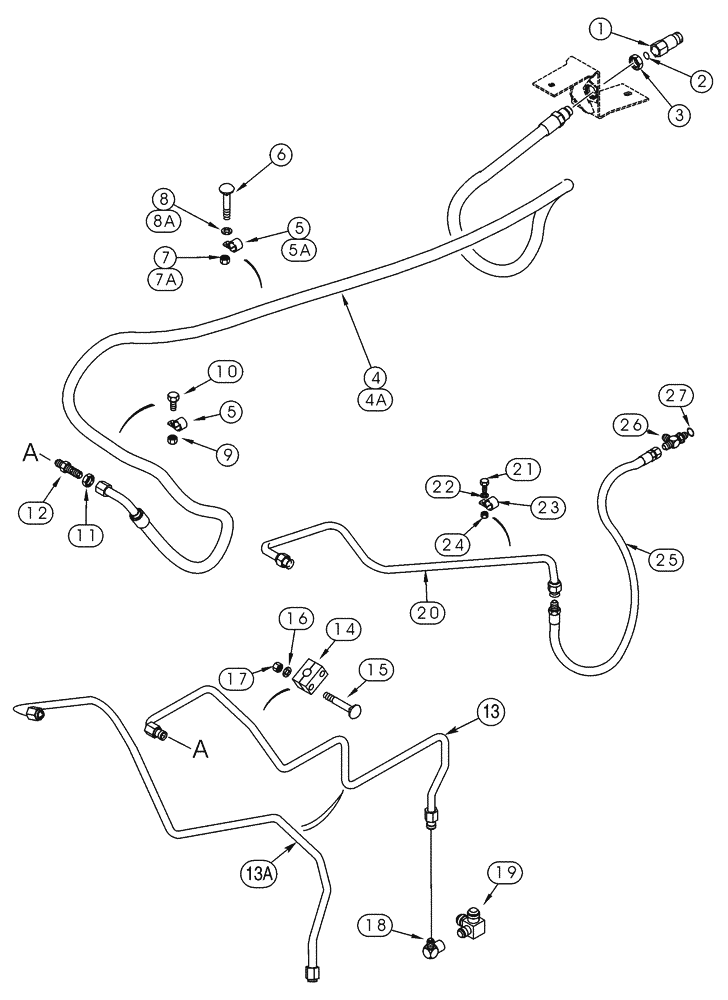

Запчасти Case 95XT (08-28) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON, DRAIN LINES TO COUPLING (08) - HYDRAULICS

1

122180A1

COUPLING, BREAK AWAY

Male, See Page(s) 8-95

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

4

226882A2

HOSE

3250 mm (128 in), 5/8 Inch ID, If Equipped

1шт.

4a

294187A1

HOSE

3250 mm (128 in), 1/2 Inch ID, If Equipped

1шт.

5

515-22254

CLAMP,1", Insul, 5/16" Bolt

Used with Ref. 4, 226882A2

2шт.

5a

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Used with Ref. 4A, 294187A1

1шт.

6

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

7

832-41308

NUT,M8 x 1.25, Cl 10

Used with Ref. 5, 515-22254

2шт.

7a

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Used with Ref. 5A, 515-23190

1шт.

9

832-41308

NUT,M8 x 1.25, Cl 10

Used with Ref. 5, 515-22254

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Used with Ref. 5, 515-22254

1шт.

11

595460

BHD LOCK NUT,7/8" - 14

7/8

1шт.

12

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

13

254430A4

TUBE

Used With 18, 19, No Longer Available, Order 254430A5, Ref. 13A

1шт.

13a

254430A5

TUBE,15.88 mm OD, 899.87, 730.81 mm Length

1шт.

14

254830A1

CLAMP BRACKET

2 piece

1шт.

15

811-6060

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8

6 x 60 mm

2шт.

16

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

17

832-41306

NUT,M6 x 1, Cl 10

2шт.

18

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

19

252946A1

TEE

1шт.

20

321649A1

TUBE

Used With 21 - 27

1шт.

21

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

23

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

24

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

25

321705A1

HOSE ASSY.

880 mm (34-3/4 in)

1шт.

26

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x fl x Or, Includes 27, See Page(s) 6-17, Replaces Ref. 2

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8a

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Used with Ref. 5A, 515-23190

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used with Ref. 5, 515-22254

2шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
