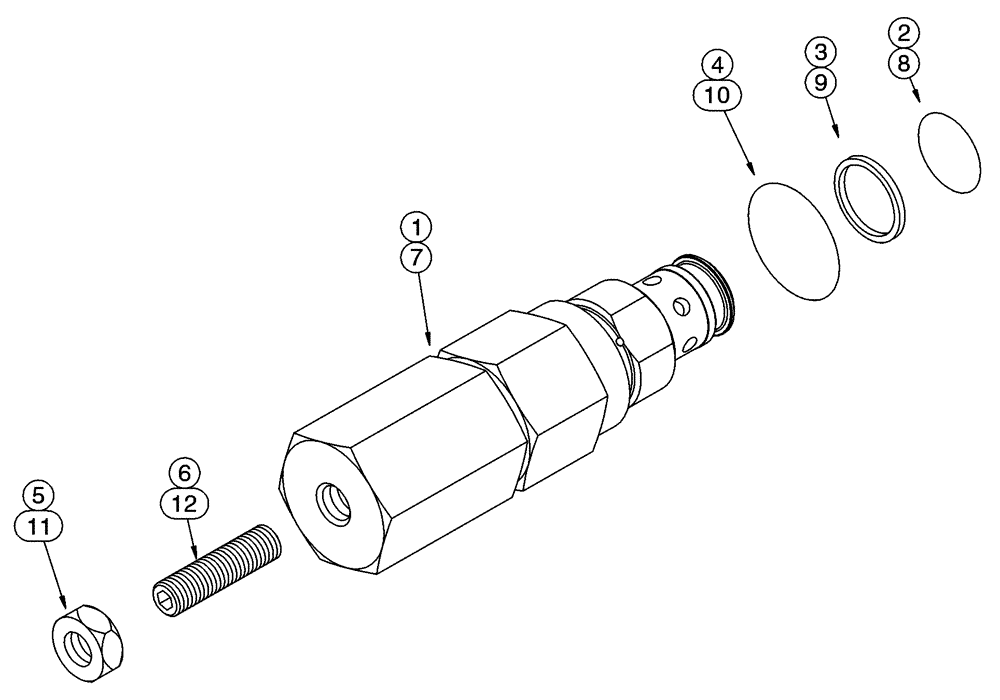

Запчасти Case 95XT (08-19) - CONTROL VALVE, RELIEF VALVES (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (08) - HYDRAULICS

234828A1

VALVE

3100 psi, Circuit Relief, Includes 1 - 6, For Service Of External Seals, Internal Component Parts Are Serviced Separately

2шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

6

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NFx1-1/4

1шт.

186709A1

VALVE

3800 psi, Circuit Relief, Includes 7 - 12, For Service Of External Seals, Internal Component Parts Are Serviced Separately

2шт.

7

NSS

NOT SOLD SEPARAT

Body

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

12

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NFx1-1/4

1шт.

249533A1

SEAL KIT

For List of Components, See Page(s) 8-61

1шт.
