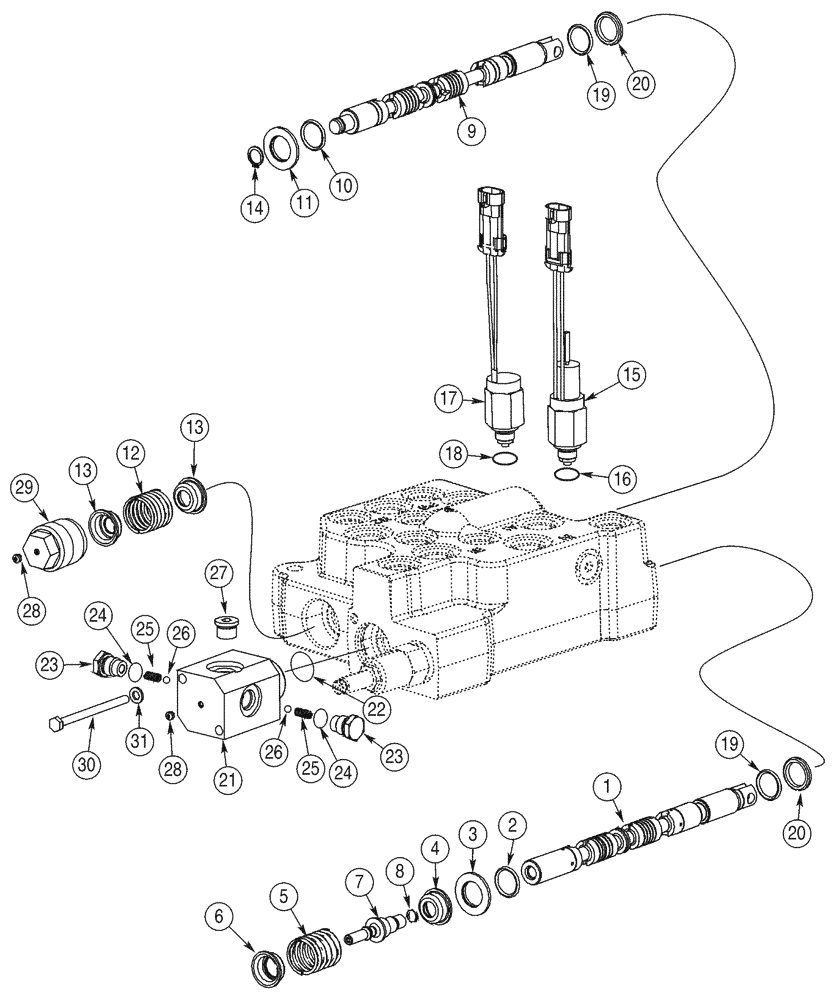

Запчасти Case 95XT (08-18) - LOADER CONTROL VALVE ASSY., SPOOLS & DETENTS (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (08) - HYDRAULICS

409062A2

VALVE

Loader, Two Spool, Consists Of 1 - 31, Also Includes 8-65, 8-67

1шт.

87431787

VALVE

Control; Incl. 1 - 31; Replaces 409062A2

1шт.

388170A3

SPOOL

Lift, With Manual Detent, Consists Of 1 - 8, Used With 409062A2

1шт.

87427902

SPOOL

Lift, With Manual Detent; Replaces 388170A3; Incl. 1 - 4, 5A, 6 - 8; Used With 87431787

1шт.

1

NSS

NOT SOLD SEPARAT

Spool, Loader Lift

1шт.

2

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

4

375708A1

SPRING WASHER

1шт.

5

380571A1

TENSION SPRING

1шт.

5a

1994596C1

SPRING

Centering

1шт.

6

375707A1

RETAINER

1шт.

383471A1

Manual Detent, Not Serviced As An Assembly, Order Components, Consists Of 7 - 8

1шт.

7

383472A1

DETENT

Use Loctite

1шт.

345-601

LOCTITE

No. 203, 1 ml

1шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

388173A3

SPOOL

Loader Bucket, Auxiliary, Consists Of 9 - 14, Used With 409062A2

1шт.

87427904

SPOOL

Loader Bucket; Auxiliary; Replaces 388173A3; Incl. 9 - 11, 12A, 13, 14; Used With 87431787

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

11

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

12

380571A1

TENSION SPRING

1шт.

12a

1994596C1

SPRING

Centering

1шт.

13

375708A1

SPRING WASHER

2шт.

14

100-1647

SNAP RING,#47, Ext

1шт.

15

411874A2

SOLENOID

Spool Lock, Includes 16, Used With 409062A2

1шт.

15

87429888

SOLENOID VALVE

Spool Lock; Incl. 16A; Used With 87431787

1шт.

16a

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

3/8 OD

1шт.

17

411875A2

SOLENOID

Spool Lock, Includes 18, Used With 409062A2

1шт.

17

87429889

SOLENOID VALVE

Spool Lock; Incl. 18A; Used With 87431787

1шт.

18a

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

3/8 OD

1шт.

19

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

20

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

21

417360A1

BLOCK

Used With 409062A2, 87431787

1шт.

22

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

1шт.

23

409916A1

PLUG

Includes 24

2шт.

25

399853A1

TENSION SPRING

Detent

2шт.

26

211-1007

BALL,7/32" Dia

Gr 24, CRS

2шт.

27

9625178

PLUG,9/16" - 18 ORB

1шт.

28

G107780

VALVE, CHECK

2шт.

29

375714A2

CAP

Centering Spring, Use Loctite

1шт.

B17423

LOCTITE

Loctite, No. 271, 50 ml

1шт.

30

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
