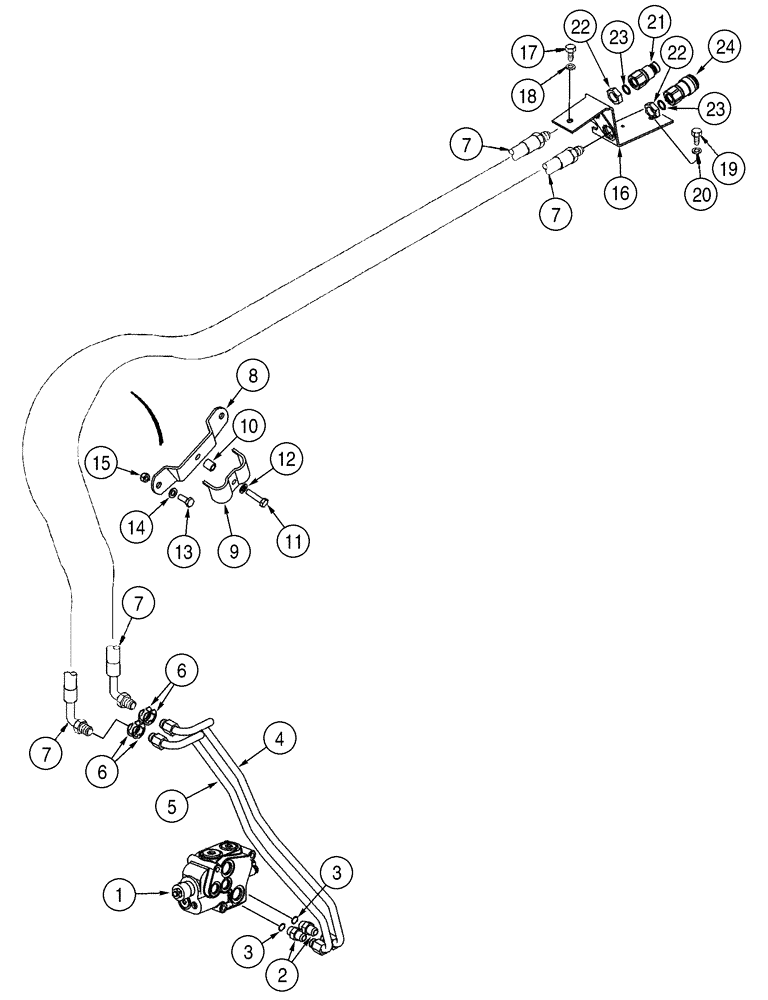

Запчасти Case 95XT (08-06) - HYDRAULICS, AUXILIARY SYSTEM (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (08) - HYDRAULICS

1

417369A1

VALVE

1 spool, Auxiliary, See Page(s) 8-25

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

426984A1

TUBE

Auxiliary Valve

1шт.

5

426982A1

TUBE

Auxiliary Valve

1шт.

6

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

7

139390A3

HOSE

3200 mm (126 in)

2шт.

8

253476A1

BAR

1шт.

9

256688A2

CLAMP BRACKET

1шт.

10

P24576

SPACER,3/8" Pipe x 11/16"

1шт.

11

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

15

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

16

197624A2

BRACKET

1шт.

17

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

393397A1

COUPLING

Male, Component Parts Not Serviced Separately

1шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

24

393396A1

COUPLING

Female, Component Parts Not Serviced Separately

1шт.
