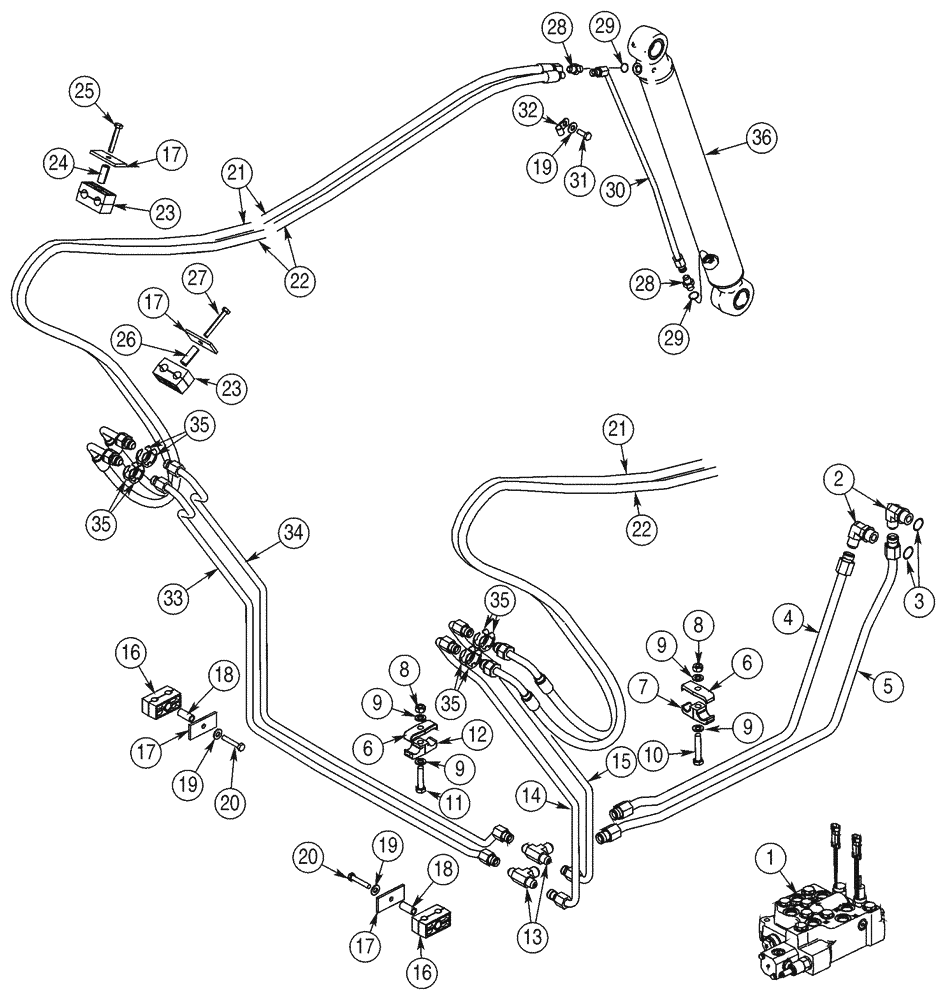

Запчасти Case 95XT (08-04) - HYDRAULICS, LOADER BUCKET (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (08) - HYDRAULICS

1

REF

INSTRUCTION

3 spool, Valve, Control, See Page(s) 8-65, 8-67, 8-77 - 8-83

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Inc. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

426980A1

TUBE

Tip, Dump

1шт.

5

426976A1

TUBE

Tip, Curl

1шт.

6

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

7

D120613

CLAMP,20mm ID

1шт.

8

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

10

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

11

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

12

D120679

CLAMP,Tube, 1/2"

1шт.

13

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

14

426990A1

TUBE

Right Hand, Curl

1шт.

15

426992A1

TUBE

Right Hand, Dump

1шт.

16

257919A1

CLAMP BRACKET

2 piece

2шт.

17

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

6шт.

18

259905A1

SPACER

2шт.

20

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

21

252963A2

HOSE,9.53mm ID x 3415mm L

3415 mm (134-1/2 in), Bucket Cylinder, Closed End

2шт.

22

252964A2

HOSE,9.53mm ID x 3400mm L

3400 mm (133-7/8 in), Bucket Cylinder, Rod End

2шт.

23

257857A1

CLAMP

2 piece

4шт.

24

293891A1

SPACER

2шт.

25

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

26

293892A1

SPACER

2шт.

27

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 29

4шт.

30

254351A4

TUBE,591 mm Length

2шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

32

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

33

426986A1

TUBE

Left Hand, Curl

1шт.

34

426988A1

TUBE

Left Hand, Dump

1шт.

35

103-3398

SNAP RING,#X98, .822" Dia, E-Type

RH

8шт.

36

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

70 ID x 525 mm strk, Loader Bucket, See Page(s) 8-93

2шт.

36

258426A3R

REMAN-HYD CYLINDER

95 XT ASN JAF0311357

2шт.

36

258426A3C

CORE-HYD CYLINDER

Return Number

2шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
