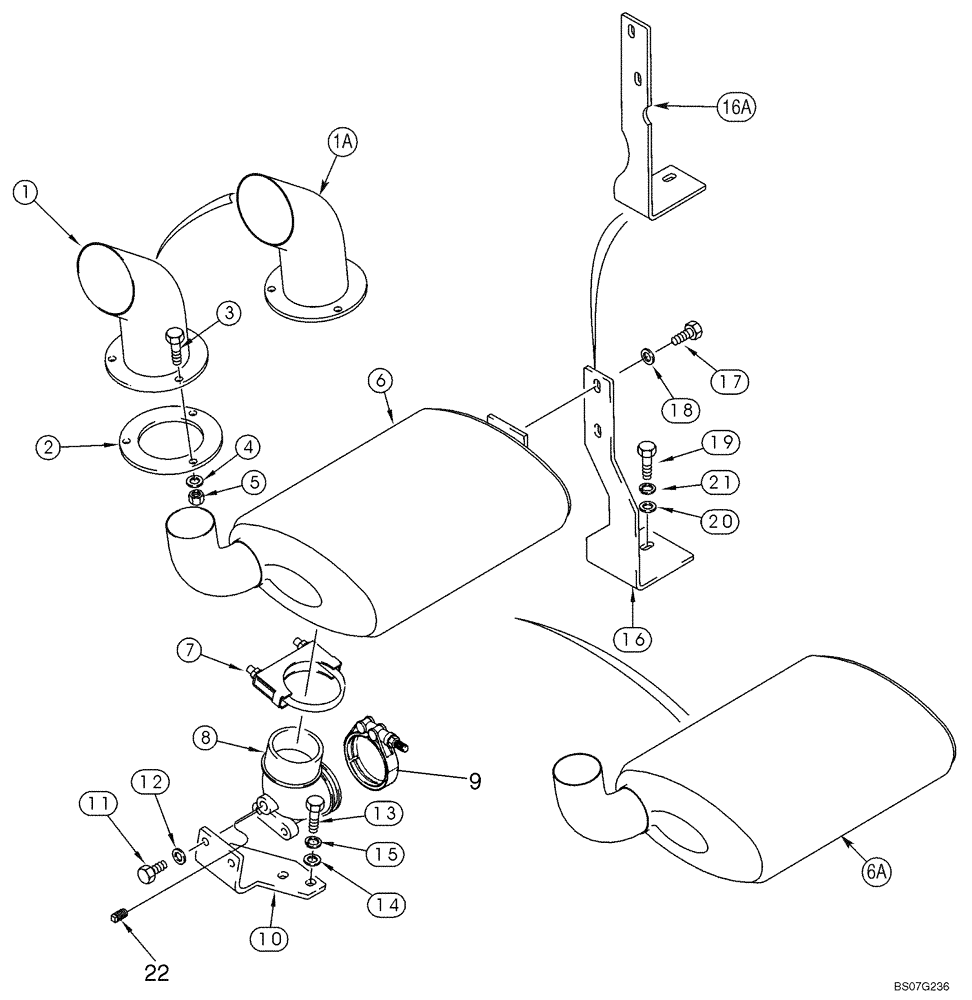

Запчасти Case 95XT (02-04) - EXHAUST SYSTEM (NORTH AMERICA JAF0237964-) (02) - ENGINE

1

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Exhaust Tube; Replaces 304811A1

1шт.

1a

281925A1

TUBE,88.9 mm OD, 227 mm Length

Exhaust, Models With Air Conditioning

1шт.

2

247026A1

LARGE PLATE

PLATE, LARGE

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

5

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

6

299455A2

MUFFLER

Turbo Exhaust, If Used

1шт.

6

87451543

MUFFLER

Spark Arrestor and Aspirated

1шт.

6a

330941A1

MUFFLER

Turbo Exhaust, If Used

1шт.

7

299456A1

CLAMP,80.5mm ID

1шт.

8

J916228

ELBOW

Outlet

1шт.

9

A170467

CLAMP,72mm ID

1шт.

10

295384A3

SUPPORT

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

15

892-11010

LOCK WASHER,M10

2шт.

16

295345A3

SUPPORT

If Used

1шт.

16a

330942A1

SUPPORT

If Used

1шт.

17

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

18

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

21

892-11010

LOCK WASHER,M10

2шт.

22

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.
