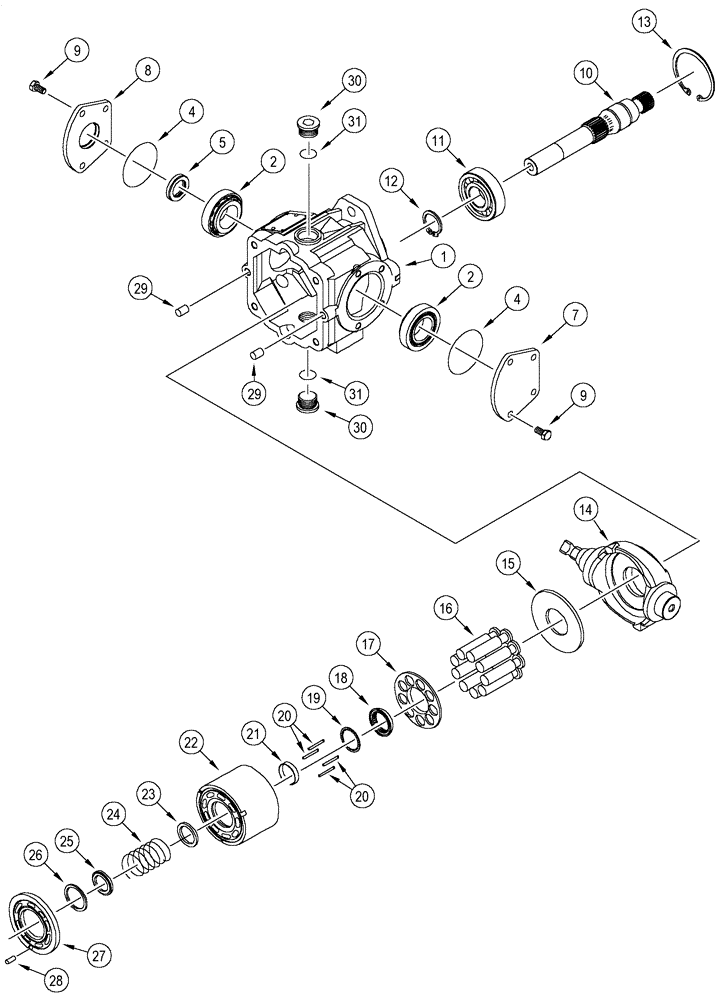

Запчасти Case 95XT (06-24) - MOTOR ASSEMBLY (06) - POWER TRAIN

192899A2

MOTOR, HYDRAULIC

Consists Of 6-55, 6-57, No Longer Available, Order 192899A3

2шт.

192899A3R

REMAN-HYD MOTOR

Reman For New Part PN 192899A2

2шт.

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

192899A3

MOTOR, HYDRAULIC

Consists Of 6-55, 6-57

2шт.

192899A3R

REMAN-HYD MOTOR

95XT CASE SKID STEER LOADER

2шт.

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

1

234382A2

HOUSING

Input Shaft

1шт.

2

241590A1

BEARING ASSY

2шт.

4

239-5146

O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro

2шт.

5

H438288

SEAL

1шт.

7

H438310

COVER

1шт.

8

H438311

COVER

1шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

8шт.

10

234387A2

SHAFT ASSY.

1шт.

11

259497A1

BEARING, ROLLER

1шт.

12

234394A2

RING, SNAP

RING SNAP

1шт.

13

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

14

234735A2

PLATE

1шт.

15

100700A1

PLATE

1шт.

234383A1

PACKAGE

Cylinder Block, Consists Of 16 - 26

1шт.

16

234386A2

PISTON

9шт.

17

176376A1

COLLAR

1шт.

18

176375A1

GUIDE RING

1шт.

19

100705A1

THRUST WASHER

1шт.

20

117381A1

SPLIT PIN/SAFETY PIN

4шт.

21

117382A1

SPLIT PIN/SAFETY PIN

1шт.

22

NSS

NOT SOLD SEPARAT

Block

1шт.

23

176372A1

WASHER

1шт.

24

176373A1

SPRING

1шт.

25

115950A1

WASHER

1шт.

26

102-22162

SNAP RING,43.20mm ID, Int, Spiral

1шт.

27

100702A1

LARGE PLATE

PLATE, LARGE

1шт.

28

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

29

F23124

AXLE PIN

2шт.

30

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 31

2шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
