Запчасти Case 95XT (06-22) - GEAR PUMP (06) - POWER TRAIN

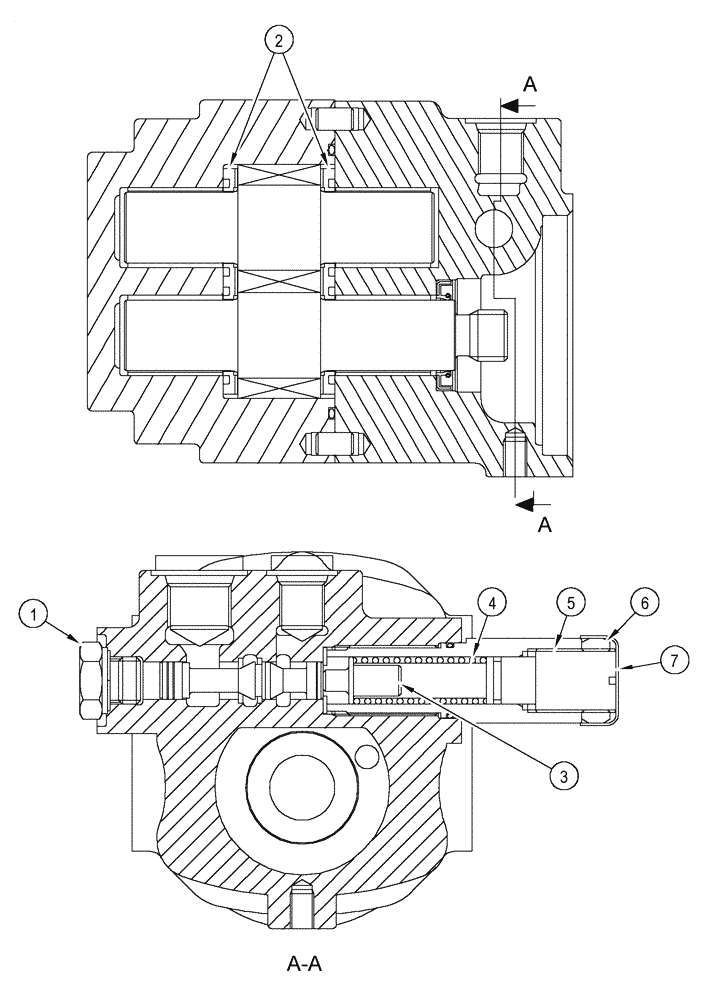

Схема запчастей Case 95XT - (06-22) - GEAR PUMP (06) - POWER TRAIN
6
1
2
5
7
4
3

Артикул

Название

Примечание

Количество

291126A2

PUMP

Includes: Ref. 1- 8

1шт.

291126A2R

REMAN-HYD PUMP

95XT

1шт.

291126A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

84412388R

REMAN-HYD PUMP

95XT CASE SKID STEER LOADER, GEAR PUMP, Reman for New PN 291126A2

1шт.

84412388C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

292540A1

PLUG

No Longer Available, Order 300295A1

1шт.

2

292543A1

SET OF PARTS

Pressure Plate; No Longer Available, Order 291162A2 Pump Assembly

1шт.

3

292542A1

RETAINER

No Longer Available, Order 300295A1

1шт.

4

292536A1

SPRING

No Longer Available, Order 300295A1

1шт.

5

292537A1

SET SCREW

No Longer Available, Order 300295A1

1шт.

6

292538A1

LOCK NUT

No Longer Available, Order 300295A1

1шт.

7

292539A1

CAP

No Longer Available, Order 300295A1

1шт.

8

292544A1

SEAL KIT

Not Illustrated

1шт.

300295A1

SET OF PARTS

Consists: Ref. Of 1, 3, 4, 5, 6, 7

1шт.

Выбрано товаров: 14
