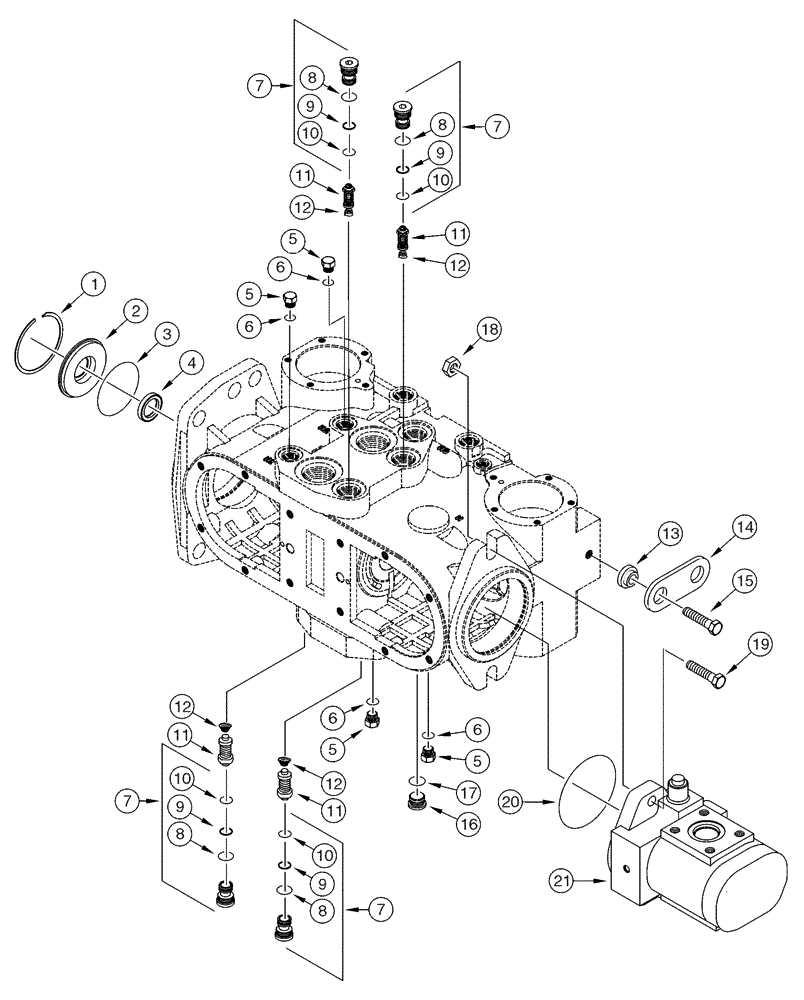

Запчасти Case 95XT (06-19) - TANDEM PUMP, PLUGS, SEALS AND EQUIPMENT PUMP MOUNTING (06) - POWER TRAIN

REF

INSTRUCTION

Pump, Tandem, See Page(s) 6-31, Consists Of 6-33 - 6-45

1шт.

1

233015A1

RING, SNAP

RING SNAP

1шт.

2

233016A1

SUPPORT

No Longer Available, Order 445306A1, 105660A1

1шт.

2

445306A1

SUPPORT

1шт.

3

259482A1

O-RING

1шт.

4

233014A1

SEAL,34.92mm ID x 53.98mm OD x 8.71mm Thk

1шт.

4

105660A1

SEAL

1шт.

5

9625178

PLUG,9/16" - 18 ORB

Incl. 6

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

259496A1

PLUG

Includes 8 - 10

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

V39097

RING

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

233044A1

VALVE

Includes: Ref. 12

4шт.

12

373329A1

SPRING

1шт.

13

105670A1

SPACER

1шт.

14

105671A1

BRACKET

1шт.

15

291133A1

SCREW

1шт.

16

86625138

PLUG,7/18" - 14

Includes Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

233050A1

NUT

2шт.

19

233049A1

SCREW

2шт.

20

238-5044

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

21

291126A2

PUMP

44cc, See Page(s) 6-51

1шт.

291126A2R

REMAN-HYD PUMP

95XT

1шт.

291126A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

21

84412388R

REMAN-HYD PUMP

95XT CASE SKID STEER LOADER, 44cc, Reman for New PN 291126A2

1шт.

21

84412388C

CORE-HYDRAULIC PUMP

Return Number

1шт.
