Запчасти Case 95XT (06-15) - TANDEM PUMP, MOUNTING (06) - POWER TRAIN

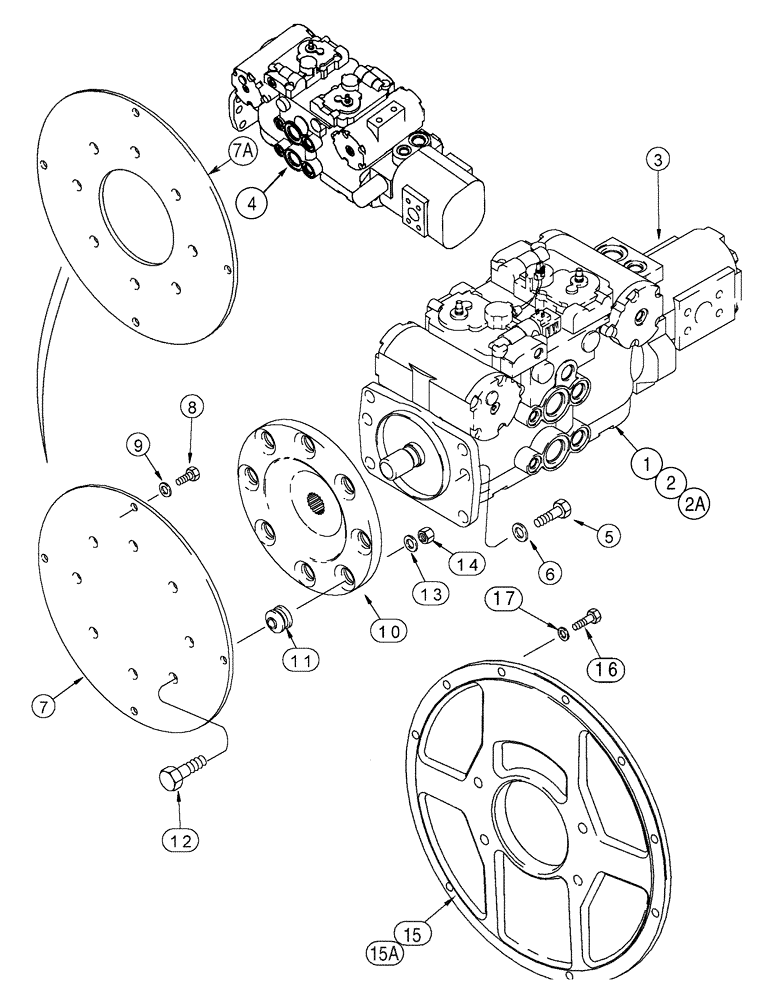

Схема запчастей Case 95XT - (06-15) - TANDEM PUMP, MOUNTING (06) - POWER TRAIN
17
2
8
5
14
15a
15
11
7a
7
6
2a
4a
4
10
9
13
16
1
12
3

Артикул

Название

Примечание

Количество

1

259623A1

PUMP, HYDRAULIC

Vendor Part Number M51-4525254, Includes 3, See Page(s) 6-33 - 6-45, Includes 3, No Longer Available, Order 357007A1, 372446A1

1шт.

1

84412388R

REMAN-HYD PUMP

95XT CASE SKID STEER LOADER, Reman for New PN 259623A1

1шт.

1

84412388C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

320269A1

PUMP

Vendor Part Number M51-4525259, Includes 3, No Longer Available, Order 357007A1, 372446A1

1шт.

2

84412388R

REMAN-HYD PUMP

95XT CASE SKID STEER LOADER, Reman for New PN 320269A1

1шт.

2

84412388C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2a

357007A1

PUMP

Vendor Part Number, M51-45252731, Also Order 372446A1, No Longer Available, Order 433904A1

1шт.

2a

84412388R

REMAN-HYD PUMP

95XT CASE SKID STEER LOADER, Reman for New PN 357007A1

1шт.

2a

84412388C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2a

433904A1

PUMP

Vendor Part Number, M51-4525014, Includes 3, See Page(s) 6-33 - 6-45

1шт.

3

291126A2

PUMP

See Page(s) 6-51, Purchase Separately

1шт.

291126A2R

REMAN-HYD PUMP

95XT

1шт.

291126A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

84412388R

REMAN-HYD PUMP

95XT CASE SKID STEER LOADER, TANDEM PUMP, Reman for New PN 291126A2

1шт.

3

84412388C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

349475A1

PUMP, HYDRAULIC

Vendor Part Number, M51-4525263, See Page(s) 6-33 - 6-45, Order 357009A1

1шт.

4

357009A1

PUMP

Vendor Part Number M51-4525275, Replaces 349475A1, Also Order, 372446A1

1шт.

357009A1R

REMAN-HYD PUMP

90XT, 95XT

1шт.

357009A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

7

H438922

LARGE PLATE

PLATE, LARGE No Longer Available, Order 404801A1

1шт.

7a

404801A1

LARGE PLATE

PLATE, LARGE

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

H436270

SPLINED COUPLING,19T, Drive, 8 Hole

Drive Coupler

1шт.

11

278365A1

BUSHING,11.5mm ID x 31.75mm OD x 26.9mm L

8шт.

12

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

13

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

8шт.

14

232-4117

LOCK NUT,7/16"-14, GC

8шт.

15

275087A3

SUPPORT

Six Hole Pattern, No Longer Used, Order 275087A4

1шт.

15a

275087A4

SUPPORT

Nine Hole Pattern

1шт.

16

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

6-9шт.

18

372446A1

KIT

Not Illustrated

1шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6-9шт.

Выбрано товаров: 36
