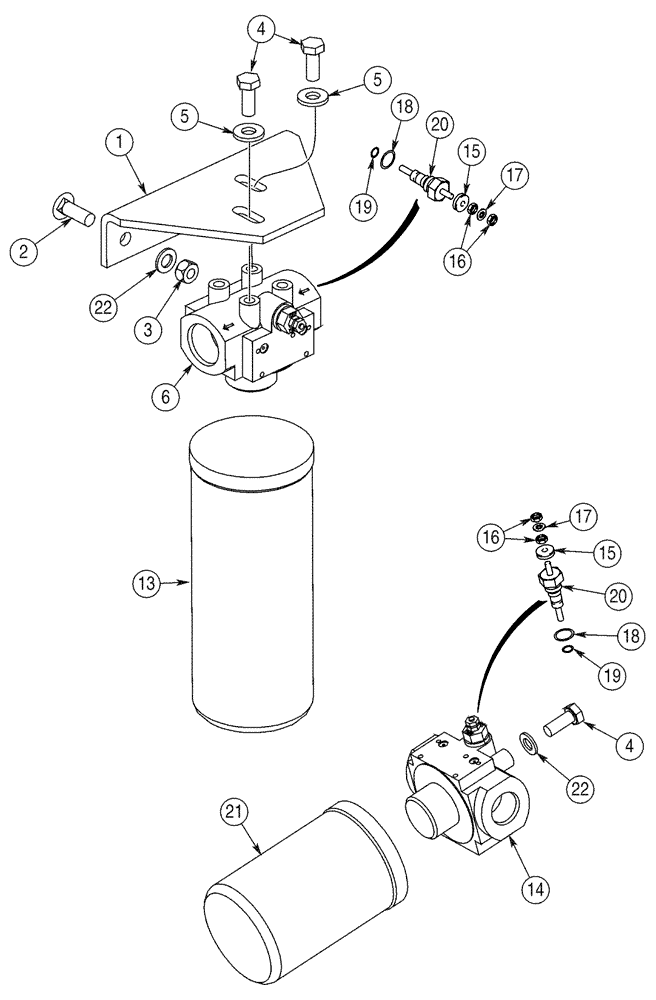

Запчасти Case 95XT (06-14) - FILTER ASSEMBLY MOUNTING (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (06) - POWER TRAIN

1

253706A1

ANGLE

1шт.

2

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

3

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

222756A2

FILTER ASSY

Return, Consists Of 6 - 13

1шт.

6

222758A1

HEAD

1шт.

N13268

PRESSURE SWITCH

Consists Of 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

Washer, Special, Red, White

1шт.

8

129-667

NUT,#10-32, LH

2шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

Indicator

1шт.

13

N9025

HYDRAULIC OIL FILTER

Replaces N14232

1шт.

13

D126922

FILTER, ELEMENT

ELEMENT, FILTER Optional

1шт.

222757A1

FILTER ASSY

Charge, Consists Of 14 - 21

1шт.

14

226664A1

HEAD

1шт.

N13268

PRESSURE SWITCH

Consists Of 15 - 20

1шт.

15

NSS

NOT SOLD SEPARAT

Washer, Special, Red, White

1шт.

16

129-667

NUT,#10-32, LH

2шт.

17

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Indicator

1шт.

21

222759A1

HYDRAULIC OIL FILTER

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
