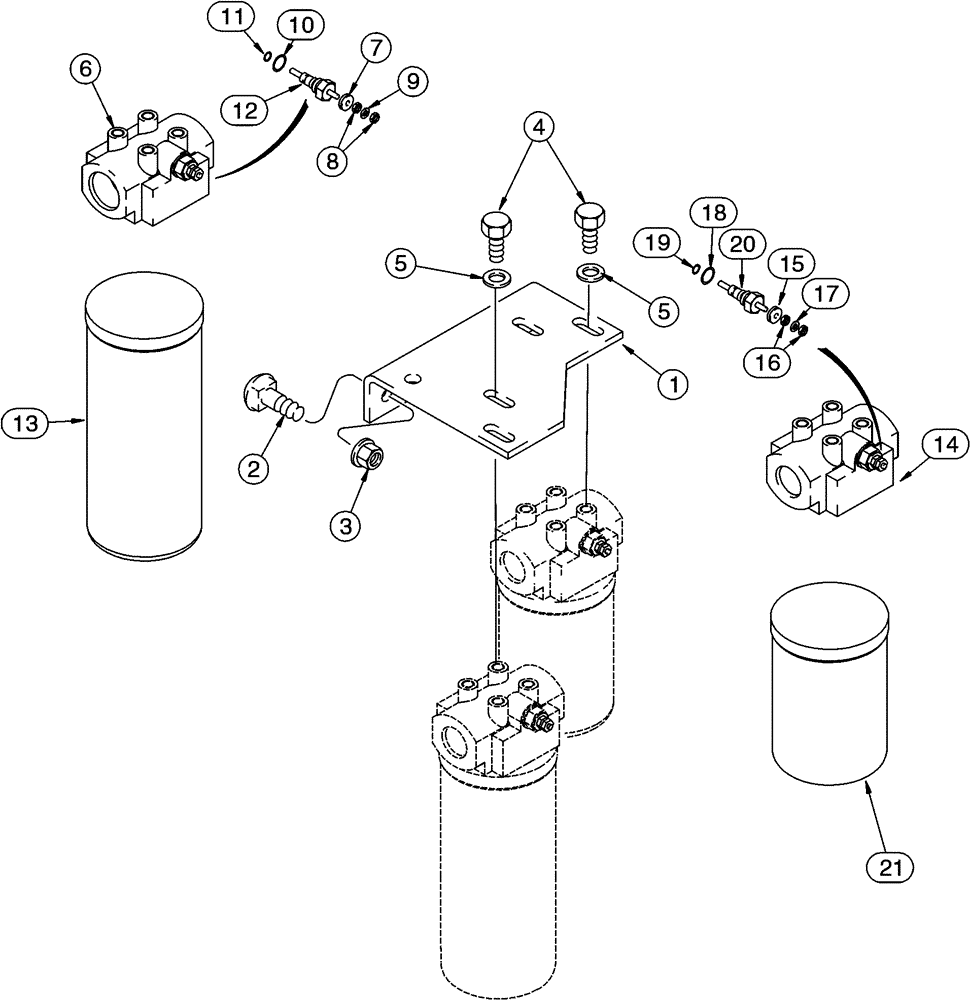

1
247237A3
SUPPORT
1шт.
2
811-10025
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8
2шт.
3
825-51410
FLANGE NUT,M10, Flg Ser
2шт.
4
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
4шт.
5
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
4шт.
222756A2
FILTER ASSY
Return, Consists Of 6 - 13
1шт.
6
222758A1
HEAD
1шт.
N13268
PRESSURE SWITCH
Consists Of 7 - 12
1шт.
7
NSS
NOT SOLD SEPARAT
Washer, Special, Red, White
1шт.
8
129-667
NUT,#10-32, LH
2шт.
9
493-21020
LOCK WASHER,Int Tooth, #10
(3/16")
1шт.
10
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
11
238-5011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro
1шт.
12
NSS
NOT SOLD SEPARAT
Indicator
1шт.
13
N9025
HYDRAULIC OIL FILTER
Replaces N14232
1шт.
13
D126922
FILTER, ELEMENT
ELEMENT, FILTER Optional
1шт.
222757A1
FILTER ASSY
Charge, Consists Of 14 - 21
1шт.
14
226664A1
HEAD
1шт.
N13268
PRESSURE SWITCH
Consists Of 15 - 20
1шт.
15
NSS
NOT SOLD SEPARAT
Washer, Special, Red, White
1шт.
16
129-667
NUT,#10-32, LH
2шт.
17
493-21020
LOCK WASHER,Int Tooth, #10
(3/16")
1шт.
18
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
238-5011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro
1шт.
20
NSS
NOT SOLD SEPARAT
Indicator
1шт.
21
222759A1
HYDRAULIC OIL FILTER
1шт.
