Запчасти Case 95XT (06-06) - HYDROSTATICS - CASE DRAIN (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (06) - POWER TRAIN

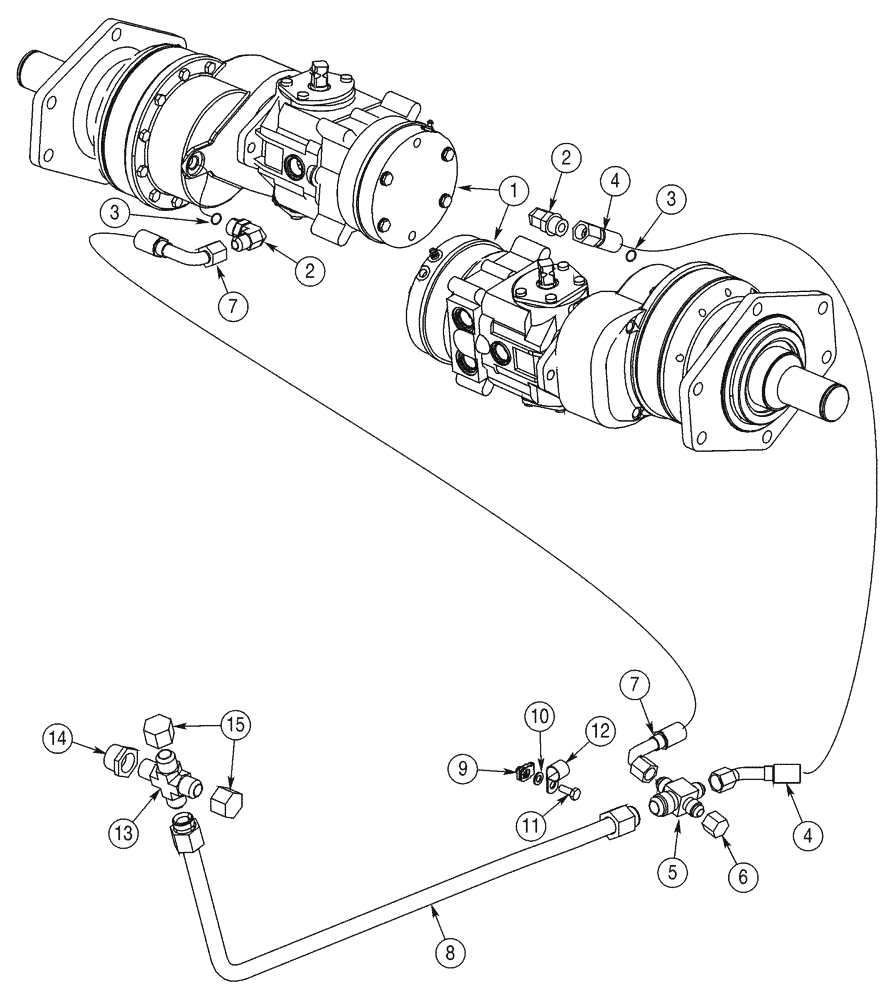

Схема запчастей Case 95XT - (06-06) - HYDROSTATICS - CASE DRAIN (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (06) - POWER TRAIN
4
12
5
1
9
2
8
11
4
7
6
3
2
15
7
3
13
14
10

Артикул

Название

Примечание

Количество

1

192899A3

MOTOR, HYDRAULIC

See Page(s) 06-12 Through 06-12A For Breakdown

2шт.

1

192899A3R

REMAN-HYD MOTOR

95XT CASE SKID STEER LOADER

2шт.

1

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

430161A1

HOSE ASSY.

950 mm (37-13/32 in), Motor Case Drain, Right Hand

1шт.

5

418507A1

FITTING

1шт.

6

218-755

CAP,37 Degree, 3/4"-16

1шт.

7

430162A1

HOSE ASSY.

375 mm (14-25/32 in), Motor Case Drain, Left Hand

1шт.

8

427039A1

TUBE

Case, Serial Range: Drain-Tank

1шт.

9

122158A1

NUT,M8, U

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

13

306389A1

CROSS

1шт.

14

221-1604

REDUCER,Hex, 1" x 3/4" NPT

1 x 3/4

1шт.

15

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 17
