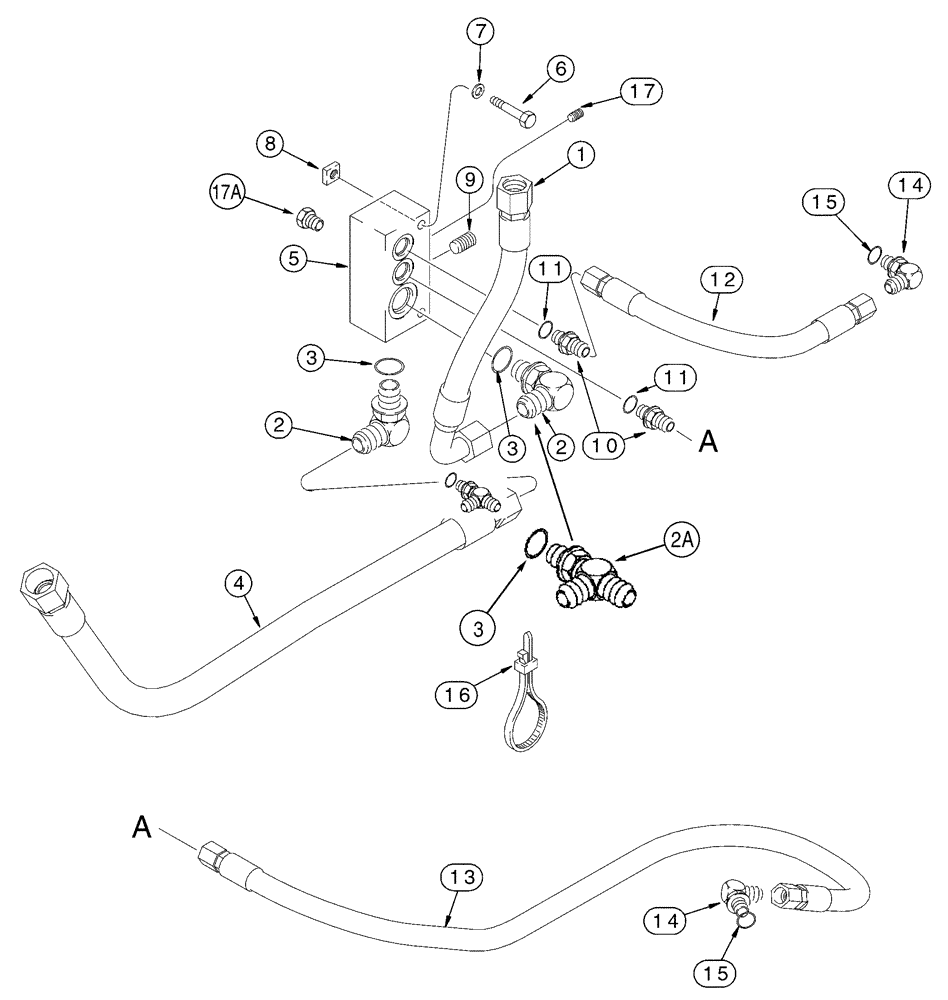

Запчасти Case 95XT (06-05) - HYDROSTATICS - MANIFOLDS (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (06) - POWER TRAIN

1

245978A1

HOSE ASSY.

390 mm (15-3/8 in), For Attaching Parts, See Page 6-7, Ref. 12

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

2шт.

2a

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x fl x Or, Includes 3, Optional High Flow Hydraulics, See Page(s) 8-37B, 8-61

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

220287A2

HOSE ASSY.

850 mm (33-1/2 in), For Attaching Parts, See Page 6-5, Ref. 6

1шт.

4a

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

Not Illustrated

1шт.

4b

86625135

PLUG,1" - 11-1/2 NPT

Not Illustrated

2шт.

5

233228A2

MANIFOLD

If Used, Replaces 233228A1

1шт.

5a

214389

PLUG,3/4" - 16 ORB

Not Illustrated

1шт.

6

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

M8 x 65

2шт.

7

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

2шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

9

217-437

PLUG,Hex Soc, 1/2" - 14 NPTF

1/2 PT, If Used

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

233266A2

HOSE

400 mm (15-3/4 in)

1шт.

13

220286A2

HOSE,1050.00 mm, Class 21, Type 2

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 15

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

17

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

If used

1шт.

17a

214389

PLUG,3/4" - 16 ORB

If Used

1шт.
