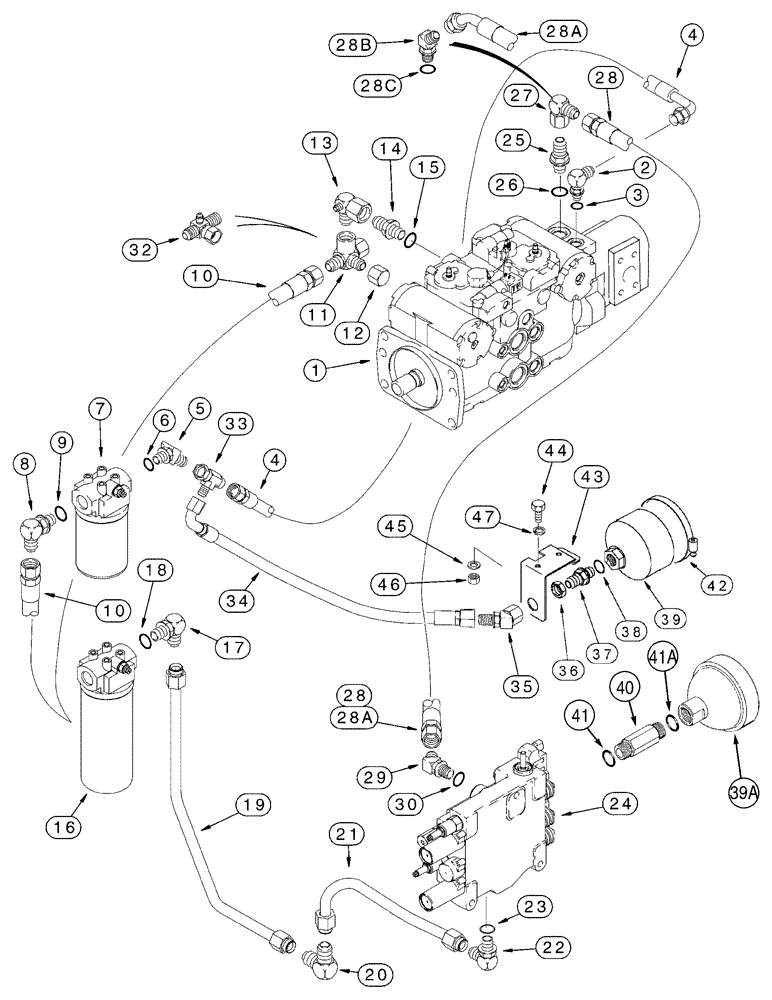

Запчасти Case 95XT (06-03) - HYDROSTATICS - PUMP, SUPPLY & RETURN, TANDEM PUMP & CONTROL VALVE TO FILTERS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Pump, Tandem, See Page(s) 06-16 Through 06-19 For Breakdown
1шт.
2
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
Includes 3
1шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
4
222920A2
HOSE ASSY.
520 mm (20-1/2 in)
1шт.
5
218-5149
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
Adj Or, Incl. 6
1шт.
6
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
7
222757A1
FILTER ASSY
Charge, See Page(s) 6-29
1шт.
8
218-5119
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
Incl. 9
1шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
10
222921A2
HOSE
825 mm (32-1/2 in)
1шт.
11
H435873
TEE
If Equipped, Used With 12, 13
1шт.
13
231697A1
ELBOW
If Equipped, Used With 11, 12
1шт.
15
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
16
222756A2
FILTER ASSY
Return, See Page(s) 6-29
1шт.
17
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Includes 18, For Models with Gear High Flow Hydraulics 8-43 thru 8-53
1шт.
19
252819A3
HYD TUBE,19.05 mm OD, 518, 439 mm Length
For Models with Gear High Flow Hydraulics 8-43 thru 8-53, Replaces 252819A2
1шт.
20
218-476
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC
1-1/16 fl x fl, For Models with Piston High Flow Hydraulics, See Page 8-109, Ref. 19, For Models with Gear High Flow Hydraulics 8-43 thru 8-53
1шт.
21
252817A3
TUBE
Replaces 252817A2
1шт.
22
218-5123
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
1-1/16 fl x 7/8 Or, Includes 23
1шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
24
REF
INSTRUCTION
3 spool, Valve, Control, See Page(s) 8-59, 8-61, 8-69 - 8-75
1шт.
25
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
7/8 fl x 1-1/16 Or, No Longer Used, Order 218-5133, Includes 26
1шт.
25a
218-5133
ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
7/16 fl x adj, Includes 26
1шт.
26
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
27
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
1шт.
28
220292A1
HOSE,390.00 mm
If Equipped, Used With 25, 27
1шт.
28a
276898A2
HOSE ASSY.
580 mm (22-7/8 in), If Equipped, Used With 28B
1шт.
28b
218-5149
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
Adj Or, Incl. 28C
1шт.
28c
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
29
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Incl. 30
1шт.
30
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
32
296384A1
FITTING
Replaces 11, 12, 13
1шт.
304063A1
SET OF PARTS
Accumulator, Consists Of 33 - 46
1шт.
Models with Accumulator, If Equipped
1шт.
33
218-5220
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
7/8 fl br x fl x sw
1шт.
34
303429A1
HOSE ASSY.
915 mm (36 in)
1шт.
35
218-5175
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC
1-1/16 fl x sw
1шт.
36
218-1256
BHD LOCK NUT,Blkhd, 1 1/16"-12
1шт.
37
126155A1
FITTING
1-1/16 blkhd fl x OR, Includes 38
1шт.
38
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
39
369304A1
Production Only, Replaces 1342628C2, Order 39A
1шт.
39a
117941A2
ACCUMULATOR
Service, Includes 40, 41, Replaces 117941A1
1шт.
40
116371A1
FITTING
Not Used In This Application
1шт.
41
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Not Used In This Application
2шт.
42
214-1480
HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm
1шт.
43
311735A1
SUPPORT
1шт.
44
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
2шт.
46
832-41308
NUT,M8 x 1.25, Cl 10
2шт.
47
892-11008
LOCK WASHER,8mm ID
Not Illustrated
2шт.
45
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
2шт.
Выбрано товаров: 53
