(04-32) - MOUNTING - COMBINATION LAMP ASSEMBLY, REAR

Запчасти Case 95XT (04-32) - MOUNTING - COMBINATION LAMP ASSEMBLY, REAR (04) - ELECTRICAL SYSTEMS

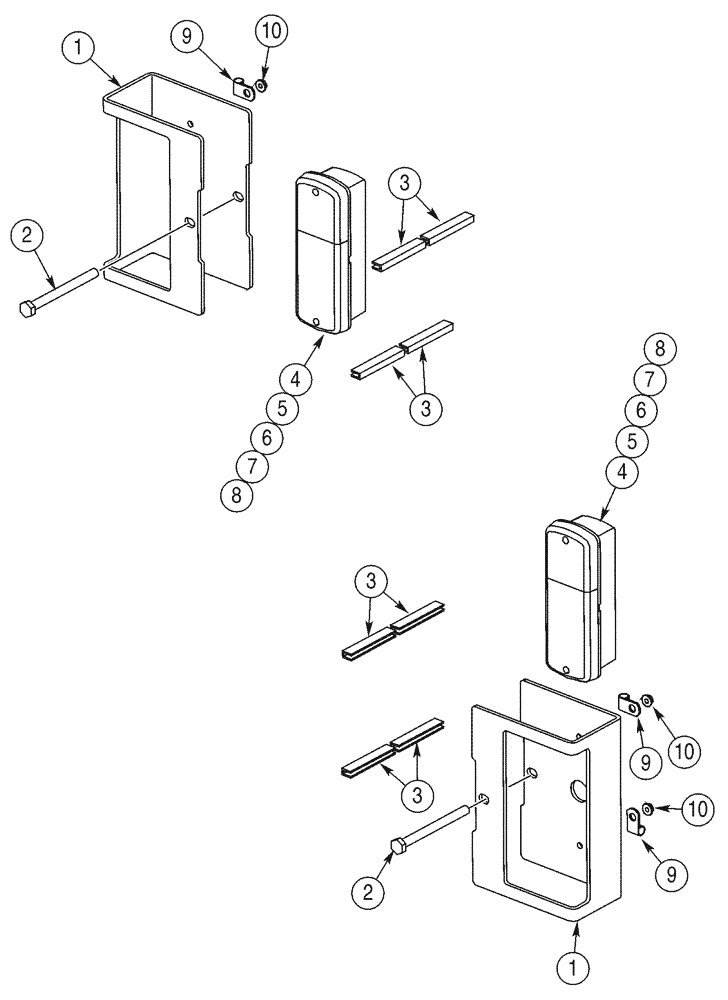

Схема запчастей Case 95XT - (04-32) - MOUNTING - COMBINATION LAMP ASSEMBLY, REAR (04) - ELECTRICAL SYSTEMS
1
3
9
8
4
5
4
6
8
2
3
10
7
3
5
2
6
3
9
1
7
10
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

367573A1

SUPPORT

2шт.

2

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

3

D55218

SEAL, GLASS,76mm L

76 mm (3 in), Cut From F42827

10шт.

4

177239A2

LAMP, TAIL

LIGHT, TAIL Combination, Includes: Ref. 5 - 7

2шт.

5

187140A1

LENS

1шт.

6

3131227R1

BULB,P25-1, 12V, 21W

Turn Signal

1шт.

7

3131234R1

BULB,P25-2, 12V, 5W

Stop and Tail

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

10

825-5146

SERRATED NUT,M6, Flg Ser

4шт.
