Запчасти Case 90XT (08-03) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

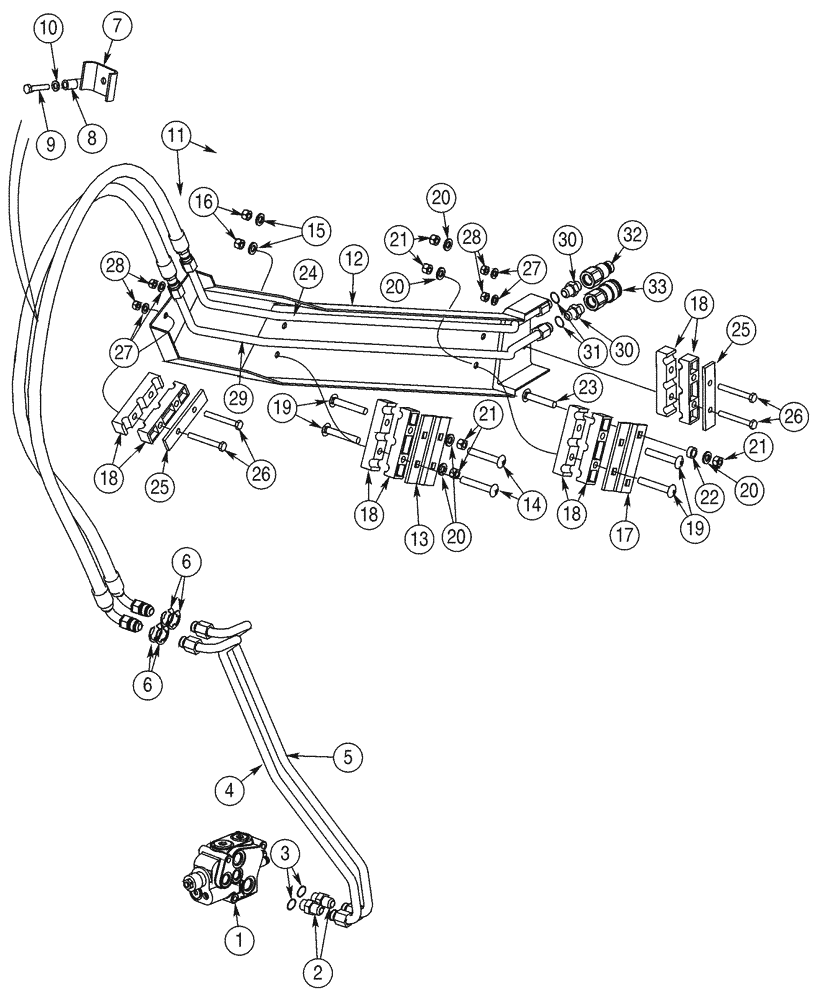

Схема запчастей Case 90XT - (08-03) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS
15
7
14
23
10
25
21
9
21
4
25
3
5
20
22
17
28
1
6
2
19
20
18
29
32
33
31
16
26
18
19
30
24
18
12
18
20
20
8
30
26
13
27
28
21
11
6
27

Артикул

Название

Примечание

Количество

1

417369A1

VALVE

1 Spool, Auxiliary, See Figure 08-10

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

4

433068A1

TUBE

1шт.

5

433070A1

TUBE

1шт.

6

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

7

277730A1

CLAMP

1шт.

8

256690A1

SPACER

1шт.

9

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

11

257587A2

HOSE ASSY.,15.88mm ID x 1735mm L

1735 mm (68-3/8 in)

2шт.

12

277527A1

PROTECTOR

1шт.

13

282954A1

SUPPORT

Rear

1шт.

14

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

2шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

16

832-41412

NUT,M12 x 1.75, Cl 10

M12

2шт.

17

282953A1

SUPPORT

Front

1шт.

18

277089A1

CLAMP

8шт.

19

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

4шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

21

832-41312

NUT,M12 x 1.75, Cl 10

6шт.

22

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

1/2 x 3/8

2шт.

23

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

Models With Hydraulic Coupler; See Figure 08-05, Ref 3

2шт.

24

277530A3

HYD TUBE,1290, 96 mm Length

Upper

1шт.

25

256976A1

BAR

2шт.

26

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

28

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

29

277532A3

HYD TUBE,1335, 96 mm Length

Lower

1шт.

30

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 31

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

32

393397A1

COUPLING

Male, Component Parts Not Serviced Separately

1шт.

33

393396A1

COUPLING

Female, Component Parts Not Serviced Separately

1шт.

Выбрано товаров: 35
