Запчасти Case 90XT (06-11) - PUMP, GEAR (Nov 22 2011 10:35AM) (06) - POWER TRAIN

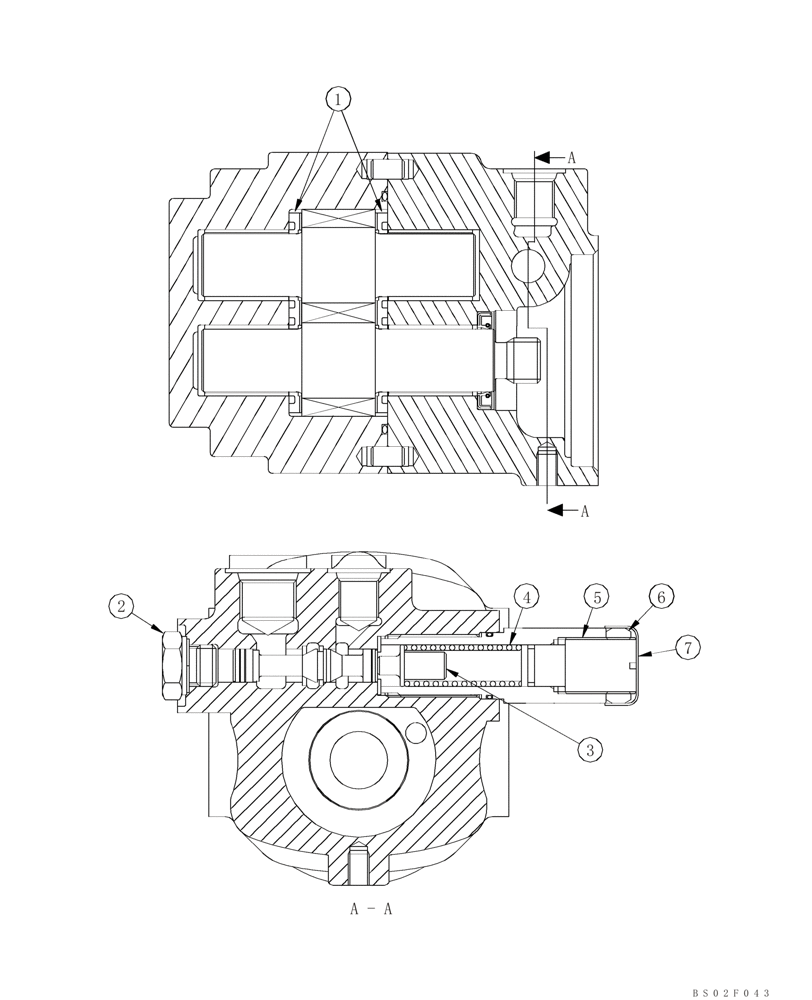

Схема запчастей Case 90XT - (06-11) - PUMP, GEAR (Nov 22 2011 10:35AM) (06) - POWER TRAIN
bs02f043
2
7
1
6
5
4
a
a-a
a
3

Артикул

Название

Примечание

Количество

291162A2

PUMP

40 cc; Incl. 1 - 8

1шт.

291162A2R

REMAN-HYD PUMP

85XT ASN JAF0352234, 90XT ASN JAF0320050

1шт.

291162A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

84412388R

REMAN-HYD PUMP

95XT CASE SKID STEER LOADER, ASN JAF0311357 (NA), 44 cc, Reman for New PN 291126A2

1шт.

84412388C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

292543A1

SET OF PARTS

Pressure Plate; No Longer Available, Order 291162A2 Pump Assembly

1шт.

2

NSS

NOT SOLD SEPARAT

Plug; Order 300295A1

1шт.

300295A1

SET OF PARTS

Repair Kit; Incl. 2 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Retainer

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Screw

1шт.

6

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

7

NSS

NOT SOLD SEPARAT

Cap

1шт.

8

292544A1

SEAL KIT

Seals; Not Illustrated

1шт.

Выбрано товаров: 14
