Запчасти Case 90XT (06-04) - HYDROSTATICS - PUMP AND DRIVE MOTORS (May 24 2011 8:54AM) (06) - POWER TRAIN

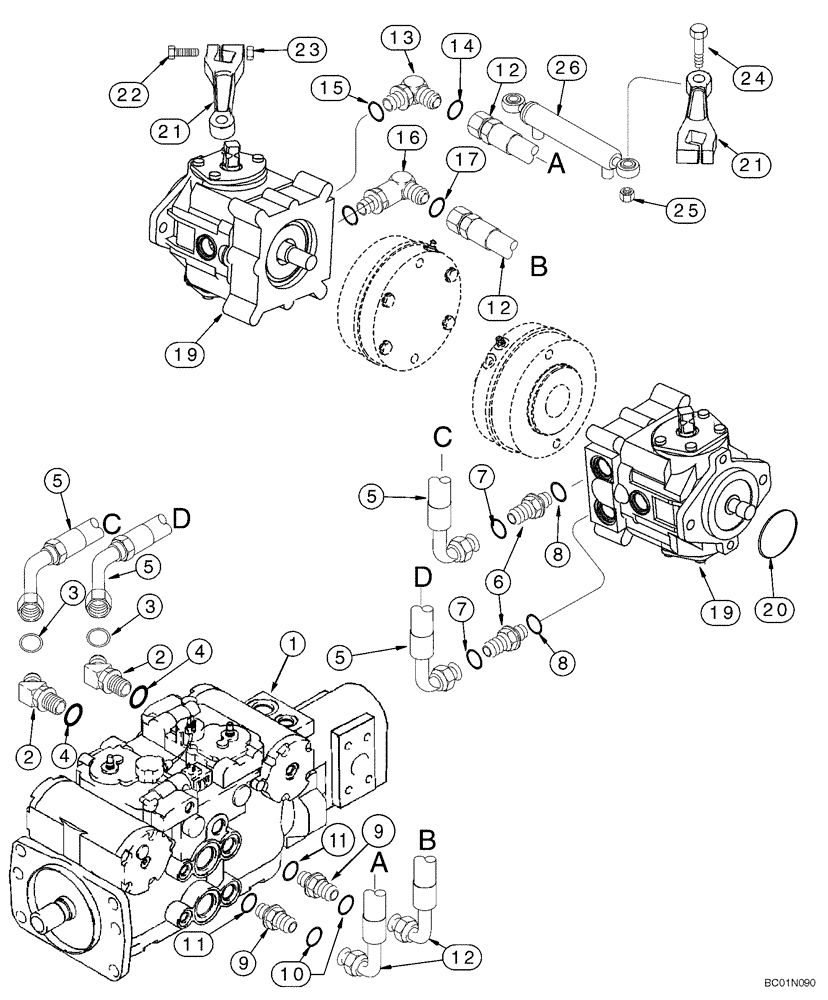

Схема запчастей Case 90XT - (06-04) - HYDROSTATICS - PUMP AND DRIVE MOTORS (May 24 2011 8:54AM) (06) - POWER TRAIN
11
21
10
5
17
8
12
24
16
2
12
23
11
7
25
5
3
19
1
14
26
9
3
19
22
5
13
7
4
9
20
12
15
2
21
5
8
6
4

Артикул

Название

Примечание

Количество

1

433903A1

PUMP

Tandem; See Figure 06-06

1шт.

1

87297990

REMAN-HYD PUMP

Remanufactured PUMP - N.A. Only

1шт.

1

87297991

CORE-HYDRAULIC PUMP

Return No, PUMP - N.A. Only

1шт.

2

201-318

ELBOW,45 Degree, 1 7/16"-12 x 1 5/16"-12. Adj, ORFS

1-7/16 fc x 1-5/16 Or; Incl. 3, 4

2шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

257378A1

HYDRAULIC HOSE

407 mm (16-1/2 in); No Longer Available; Order 257378A4

2шт.

5

257378A4

HYDRAULIC HOSE,19.05mm ID x 420mm L

420 mm (16-1/2 in)

1шт.

6

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 7, 8

2шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1-3/16 fc x 1-5/16 Or; Incl. 10, 11

2шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

283547A1

HOSE,19.05mm ID x 850mm L

2шт.

13

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-3/16 fc x 1-1/16 Or; Incl. 14, 15

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl 17, 18

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

59/64 ID x 7/64

1шт.

19

192899A3

MOTOR, HYDRAULIC

See Figure 06-12, 06-12A

2шт.

19

192899A3R

REMAN-HYD MOTOR

Reman For New P/N 192899A3

2шт.

19

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

20

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

2шт.

21

318532A1

LEVER

4шт.

22

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

23

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

24

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

25

832-41412

NUT,M12 x 1.75, Cl 10

M12

2шт.

26

308242A1

CYLINDER ASSY.

32 ID x 38 mm strk, Component Parts Not Serviced Separately, See Figure 06-04A Ref. 5

2шт.

Выбрано товаров: 31
