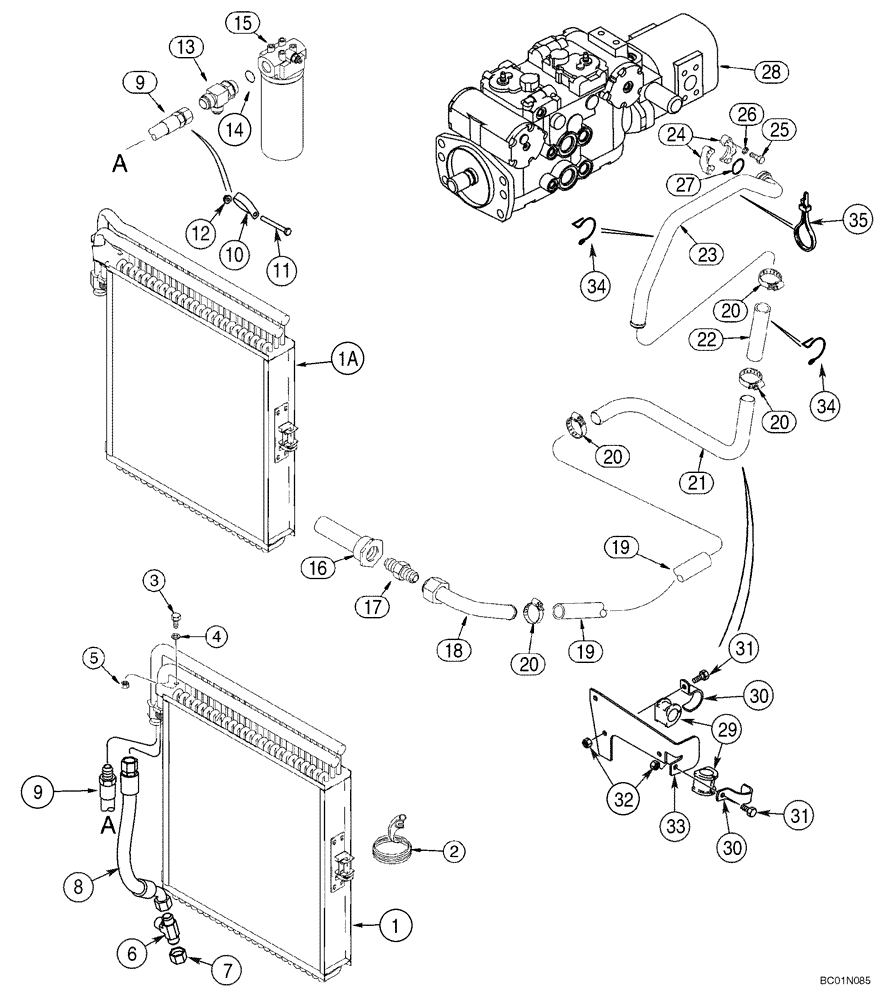

Запчасти Case 90XT (06-01) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (Aug 13 2010 12:21PM) (06) - POWER TRAIN

REF

INSTRUCTION

OIL COOLER TO TANDEM PUMP AND FILTER

1шт.

1

237994A2

COOLER, OIL

North American Models; With Turbulators, Behr# BM20561 And Core Length Of 20-1/4"

1шт.

1a

301685A1

COOLER, OIL

Emissions Certified Engine; Without Turbulators, Behr# BM20566 And Core Length Of 21.03"

1шт.

1b

393188A1

OIL COOLER

European Models; Not Illustrated; Without Turbulators, Vender# 1E4958D And Core Length Of 20-1/4"

1шт.

2

230745A1

RUBBER SEAL,512mm L

512 mm

8шт.

2

304908A1

SEAL

535 mm; European Models; Models With Air Conditioning; Models With Heat; Emissions Certified Engine

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

Emissions Certified Engine; European Models

2шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

5

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

6

218-558

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

7

218-758

CAP,37 Degree, 1 5/16"-12

1-5/16; Used With REF 9

1шт.

8

427037A1

HOSE ASSY.

660 mm (26 in); Oil Cooler To Tank

1шт.

9

242592A3

HOSE

1600 mm (63 in); North American Models

1шт.

9

431835A1

HOSE ASSY.

1725 mm (67-7/8 in); European Models

1шт.

10

515-23476

CLAMP,1 7/8", Insul, 3/8" Bolt

1-7/8 ID

1шт.

11

814-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

M10 x 95

1шт.

12

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

13

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

222756A2

FILTER ASSY

Return; See Figure 06-05

1шт.

16

189310A1

STRAINER ASSY.

1шт.

17

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

1-5/8 fl x 1-1/4 PT

1шт.

18

194853A1

TUBE,31.8 mm OD

Suction

1шт.

19

278772A1

HOSE ASSY.,31.8mm ID x 710mm L

710 mm (28 in); Main Suction Hose

1шт.

20

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

21

256314A1

TUBE

1шт.

22

256406A1

HYDRAULIC HOSE

115 mm (4-1/2 in); Suction

1шт.

23

276587A1

TUBE,238, 225 mm Length

1шт.

24

A12301

CLAMP,Half

2шт.

25

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

7/16 x 1-1/4

4шт.

26

492-11044

LOCK WASHER,7/16"

4шт.

27

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

28

433902A1

PUMP

See Figure 06-06

1шт.

28

87297988

REMAN-HYD PUMP

Remanufactured PUMP - N.A. Only

1шт.

28

87297989

CORE-HYDRAULIC PUMP

Return No, PUMP - N.A. Only

1шт.

29

D67298

INSULATOR

2шт.

30

302287A1

CLAMP

2шт.

31

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

32

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

33

295628A1

SUPPORT

1шт.

34

418796A1

CABLE CLIP

No Longer Available

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

419051A1

HOSE ASSY.

1200 mm (47-1/4 in)

1шт.

34

296384A1

FITTING

1шт.

35

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

3/4 fl x 7/8 Or

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
