Запчасти Case 90XT (04-26) - ENGINE - SHUTDOWN, AUTOMATIC (04) - ELECTRICAL SYSTEMS

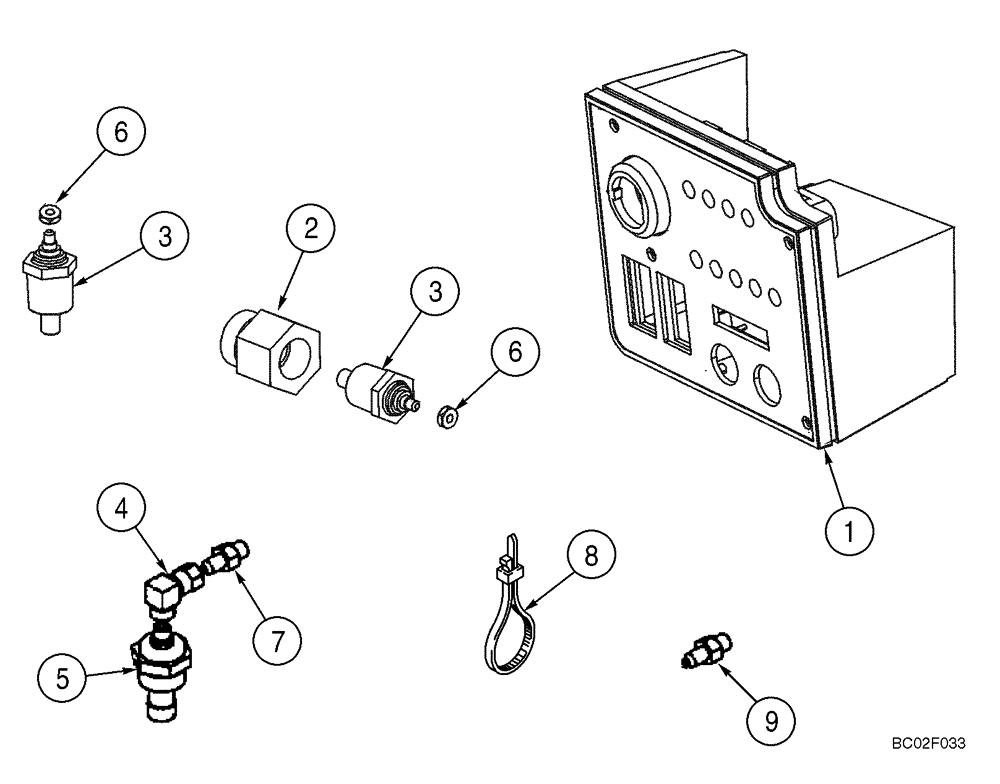

Схема запчастей Case 90XT - (04-26) - ENGINE - SHUTDOWN, AUTOMATIC (04) - ELECTRICAL SYSTEMS
9
6
4
2
3
8
5
1
7
3
6

Артикул

Название

Примечание

Количество

447563A1

SERVICE KIT

Incl. 1 - 9; Not Serviced Separately

1шт.

1

189493A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand Deluxe; See Figure 04-12, Ref 3

1шт.

2

218-5424

FITTING

1-1/16 Or x 1/2 fem PT

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil Temperature

2шт.

4

357762A1

ELBOW

1шт.

5

426036A1

SENSOR

Engine Oil Pressure

1шт.

6

225-14210

NUT,#10-32

2шт.

7

452051A1

ADAPTER,M10 x 1 ORB x 7/16" - 20 ORB

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

6шт.

9

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

1шт.

Выбрано товаров: 10
