Запчасти Case 90XT (04-08) - HARNESS - CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS

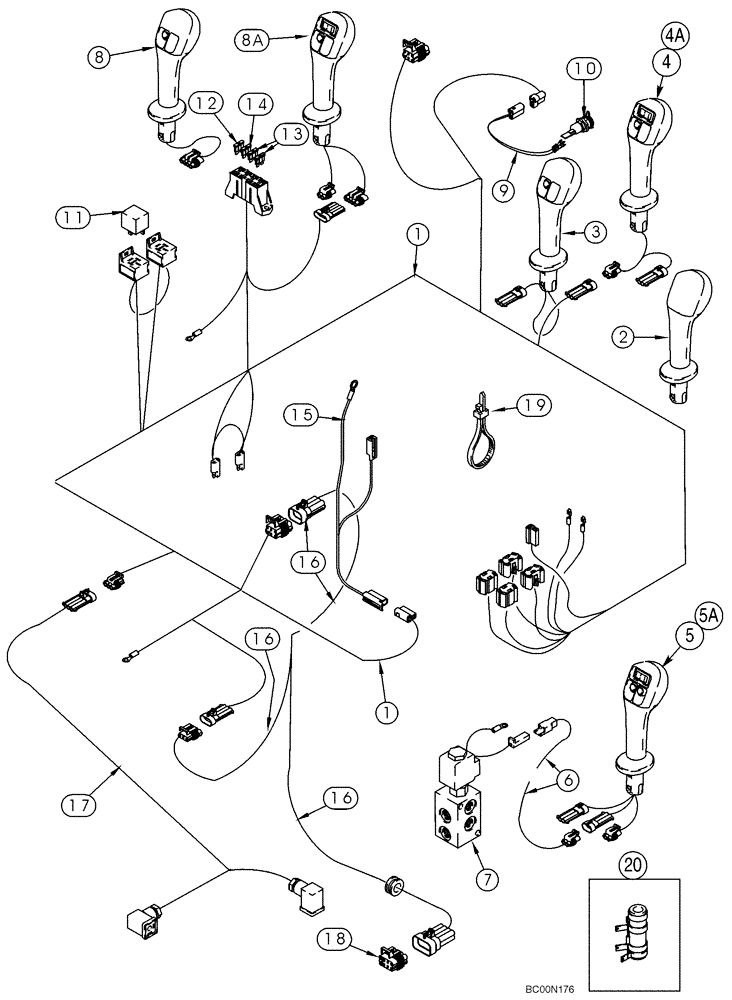

Схема запчастей Case 90XT - (04-08) - HARNESS - CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS
3
16
9
6
18
10
12
20
11
8
7
1
5a
13
16
19
1
14
15
5
16
4
2
17
4a
8a

Артикул

Название

Примечание

Количество

1

400180A1

HARNESS

Chassis Options; With Coupler Timer Harness

1шт.

2

235763A1

HANDLE

Control; Left Hand; No Switches

1шт.

3

235766A2

HANDLE

Control; Right Hand; Horn; See Figure 04-17

1шт.

4

233436A2

HANDLE

Control; Right Hand; Horn, Turn Signal; See Figure 04-17; If Used

1шт.

4a

379500A1

HANDLE

Control; Right Hand; Horn, Turn Signal; See Figure 04-17; If Used

1шт.

5

308598A1

HANDLE

Control; Right Hand; Horn, Turn Signal, Ride Control; See Figure 04-17; If Used

1шт.

5a

379501A1

HANDLE

Control; Right Hand; Horn, Turn Signal, Ride Control; See Figure 04-17; If Used

1шт.

6

310838A1

HARNESS

Ride Control; See Figure 08-04

1шт.

7

308023A1

VALVE

Solenoid; Ride Control; See Figure 08-04

1шт.

8

235765A2

HANDLE

Control; Left Hand; Brake; See Figure 04-18

1шт.

8a

235909A3

HANDLE

Control; Left Hand; Brake, High Flow; See Figure 04-18

1шт.

9

276912A1

HARNESS

Accessory Outlet; Europe Only

1шт.

10

142211A1

SOCKET

Europe Only

1шт.

11

D128310

RELAY

30 amp; Accessory Power

1шт.

12

A149802

FUSE

20 amp

1шт.

13

A149800

FUSE,10 Amp

10 amp

2шт.

14

A149803

FUSE,25 Amp

25 amp

1шт.

15

259347A1

HARNESS

Hydraulic Coupler; See Figure 08-05

1шт.

16

244893A1

HARNESS

Front Auxiliary Controls; If Equipped

1шт.

16

426764A1

HARNESS

Front Auxiliary Controls; North American Models; European Models; See Figure 04-15

1шт.

17

381005A1

HARNESS

High Flow, Gear; If Equipped; See Figure 08-16

1шт.

18

256350A1

CONNECTOR, ELEC

CONNECTOR If Equipped; Required For Attachments That Will Mount To The Front Auxiliary Controls Harness, Ref 16

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

20

401360A1

RESISTOR

Blower; 12V; Models With Deluxe Heater

1шт.

317859A1

HARNESS

Models With Deluxe Heater; See Figure 09-37

1шт.

403512A1

HARNESS

Cab; Models With Deluxe Heater; See Figure 09-37

1шт.

326496A3

HARNESS

Turn Signal; See Figure 04-10

1шт.

377811A1

HARNESS

Flasher; See Figure 04-10

1шт.

Выбрано товаров: 28
