(03-04B) - WASTEGATE SYSTEM, NORTH AMERICAN MODELS WITHOUT AIR CONDITIONING

Запчасти Case 90XT (03-04B) - WASTEGATE SYSTEM, NORTH AMERICAN MODELS WITHOUT AIR CONDITIONING (03) - FUEL SYSTEM

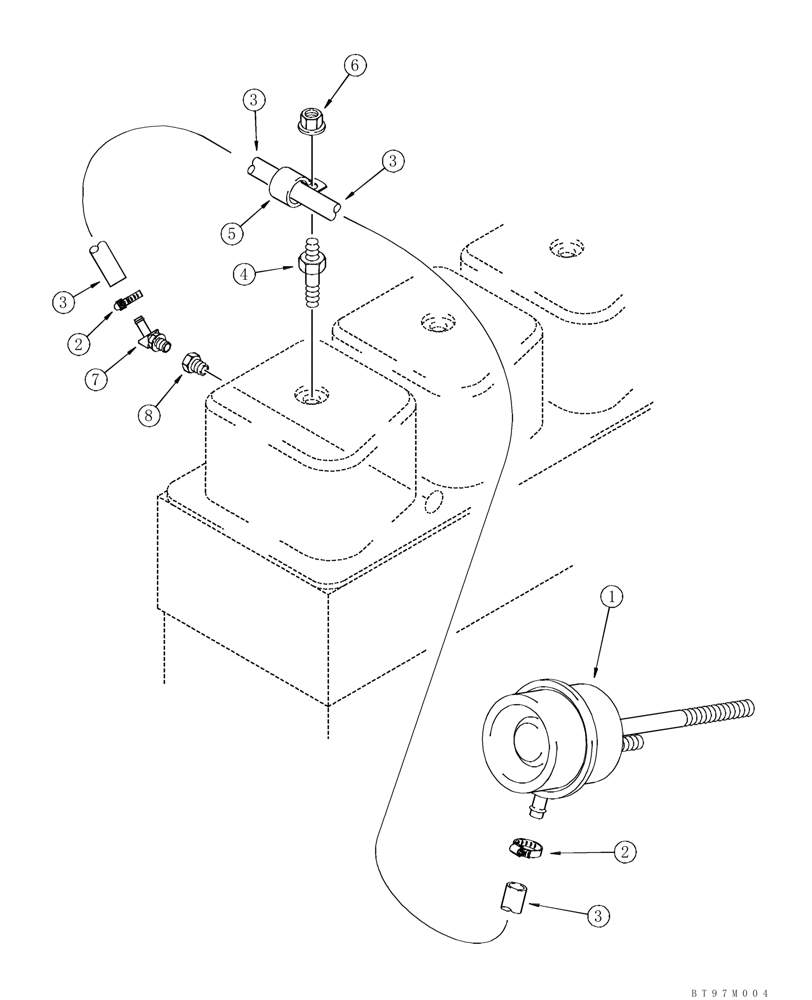

Схема запчастей Case 90XT - (03-04B) - WASTEGATE SYSTEM, NORTH AMERICAN MODELS WITHOUT AIR CONDITIONING (03) - FUEL SYSTEM
8
bt97m004
2
6
5
3
2
3
3
1
4
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

J594011

ACTUATOR

See Figure 02-09C

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

3

J991047

HOSE,6.35mm ID x 710mm L

1шт.

4

J920344

FLANGE BOLT

M8

1шт.

5

J920348

CLIP,ELECTRICAL

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

7

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

8

221-87

REDUCER,1/2" NPT x 1/8" NPT

1шт.
