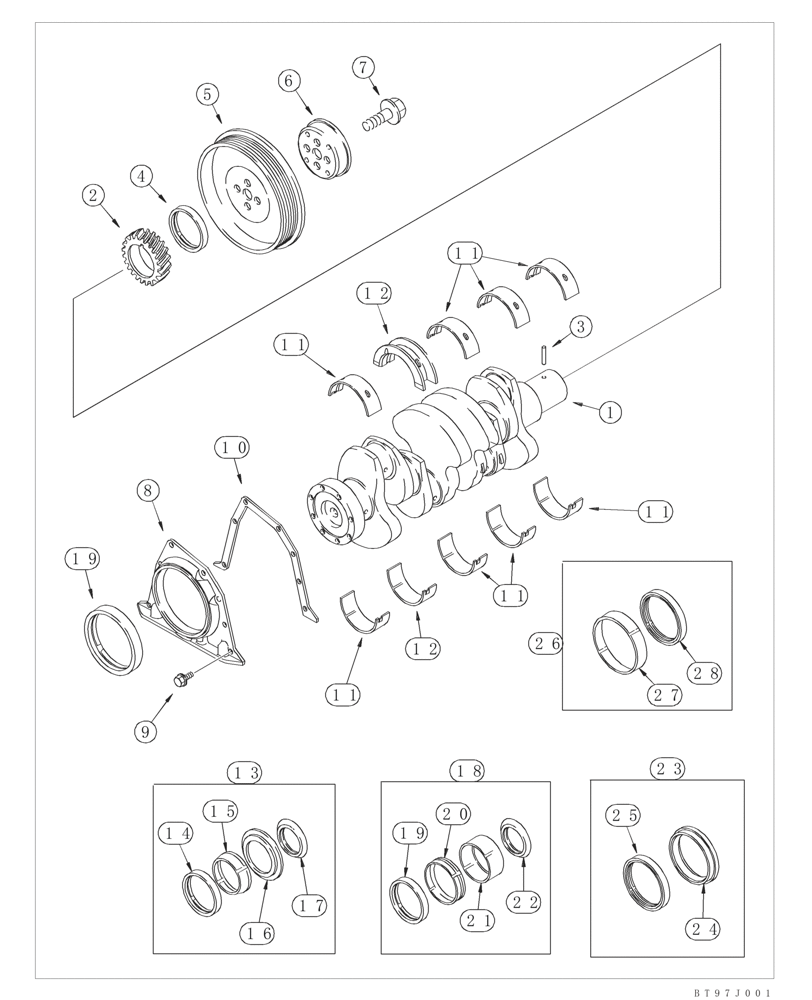

Запчасти Case 90XT (02-16) - CRANKSHAFT (02) - ENGINE

REF

INSTRUCTION

4-390 EMISSIONS CERTIFIED ENGINE

1шт.

JR908031

CRANKCASE

Remanufactured

1шт.

J929036R

REMAN-CRANKSHAFT

75XT ASN JAF0318922 (NA) JAF0352169 (EU), 85XT ASN JAF0352234 (NA) JAF0352715 (EU), 90XT ASN JAF0320050 (NA) JAF0274262 (EU), 95XT ASN JAF0311357 (NA) JAF0274360 (EU), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

1шт.

1

J908031

CRANKSHAFT

Incl. 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

75XT ASN JAF0318922 (NA) JAF0352169 (EU), 85XT ASN JAF0352234 (NA) JAF0352715 (EU), 90XT ASN JAF0320050 (NA) JAF0274262 (EU), 95XT ASN JAF0311357 (NA) JAF0274360 (EU), Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Dowel

1шт.

4

NSS

NOT SOLD SEPARAT

Seal; Order A77889; See Figure 02-16

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J921043

REAR COVER

N.A. Only

1шт.

8

J936904

REAR COVER

Europe Only

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J938159

GASKET

Mounting

1шт.

11

J804940

BEARING SET

Standard

4шт.

11

A77472

BEARING SET

Undersize 0,25 mm

4шт.

11

A77474

BEARING SET

Undersize 0,50 mm

4шт.

11

A77476

BEARING SET

Undersize 0,75 mm

4шт.

11

A77478

BEARING SET

Undersize 1,0 mm

4шт.

12

A77895

THRUST BEARING,KIT

Standard

1шт.

12

A77473

THRUST BEARING

Undersize 0,25 mm

1шт.

12

A77475

THRUST BEARING

Undersize 0,50 mm

1шт.

12

A77477

THRUST BEARING

Undersize 0,75 mm

1шт.

12

A77479

THRUST BEARING

Undersize 1,0 mm

1шт.

12

A77841

THRUST BEARING

Undersize 0,50 mm

1шт.

12

A77840

THRUST BEARING

Undersize 1,0 mm

1шт.

13

A77889

SEAL PACKAGE

Front; Incl. 15 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal; Front

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft; Front; Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield; N.A. Only

1шт.

23

J934486

SERVICE KIT

Crankshaft; Rear; Incl. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Crankshaft; Rear; Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
