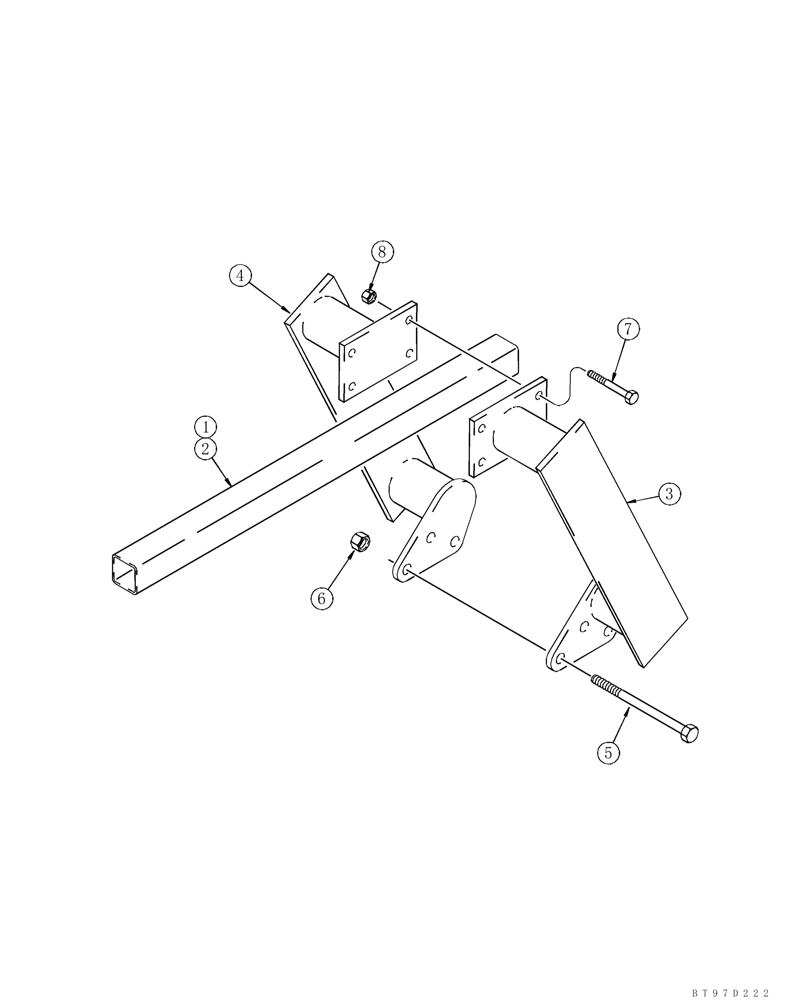

Запчасти Case 90XT (09-45H) - TRENCHER - GUARD, CHAIN (NORTH AMERICA) (09) - CHASSIS

120625A1

KIT

Restraint; Incl. 1; Also Incl. Decals

1шт.

1

NSS

NOT SOLD SEPARAT

Bar; 4 ft; If Equipped

1шт.

2

H672675

GUARD

5 ft; If Equipped; Order From Wholegoods H939089

1шт.

3

117777A1

ANCHOR

Left Hand

1шт.

4

117778A1

ANCHOR

Right Hand

1шт.

5

426-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

3/4 x 7; 8

3шт.

6

232-41112

NUT,3/4"-10, GC

3шт.

7

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4

4шт.

8

232-4118

NUT,1/2"-13, GC

4шт.

REF

INSTRUCTION

NOTE : ORDER CHAIN THROUGH SHIP DIRECT PROGRAM

1шт.
