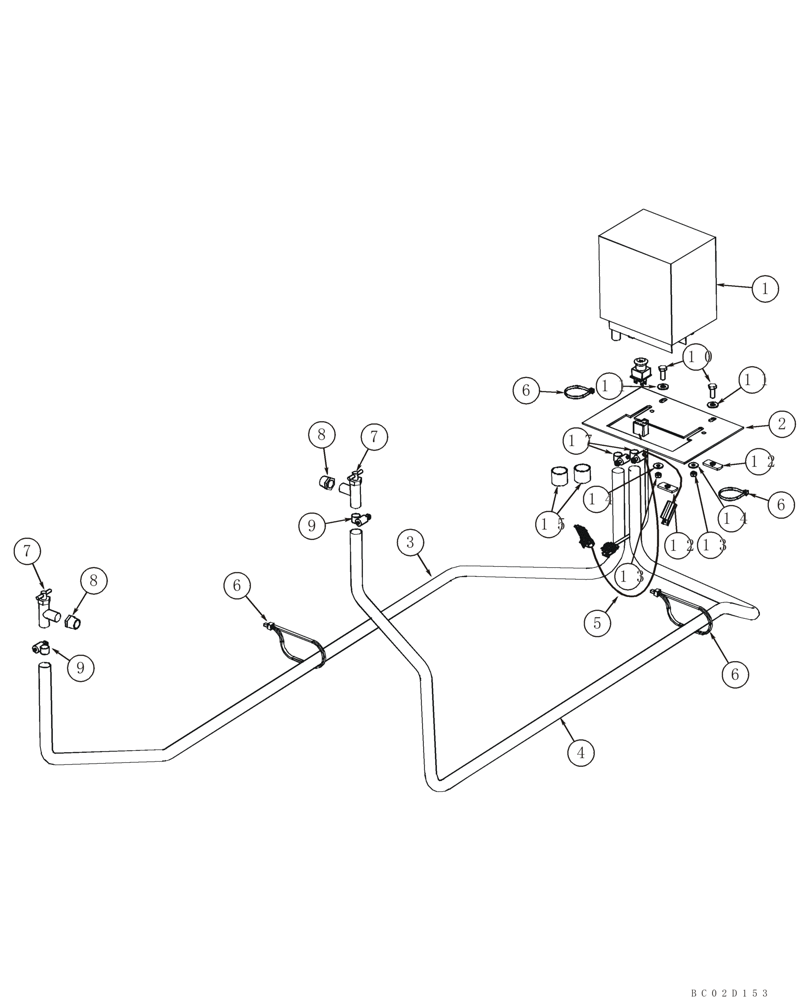

Запчасти Case 90XT (09-36) - HEATING SYSTEM - HEATER, FLOOR (09) - CHASSIS

REF

INSTRUCTION

NORTH AMERICA ONLY

1шт.

1

434784A1

HEATER ASSY.

Component Parts Not Serviced Separately; Incl. 256344A1; Order From WholeGoods

1шт.

256344A1

CONNECTOR, ELEC

CONNECTOR

1шт.

2

380271A3

PLATE

Heater Adapter

1шт.

3

434780A1

HEATER HOSE,15.88 mm ID x 3099.00 mm

2997 mm (118 in); Return

1шт.

4

434779A1

HEATER HOSE,15.88 mm ID x 2997.00 mm

2895 mm (114 in); Supply

1шт.

5

434360A1

HARNESS

Attaches to 168822C2; See Figure 04-09, Ref. 12; Attaches to 400180A1 (Chassis Options Harness); See Figure 04-08, Ref. 1

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

7

301803R1

SHUT-OFF VALVE

2шт.

8

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

Black; If Used

2шт.

8

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

Galvanized; If Used

2шт.

9

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

12

830-1108

NUT,Weld, M8

2шт.

13

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

15

434781A1

CONDUIT

2шт.

16

295007A1

SEAL

See Figure 09-11, Ref 14

2шт.

17

299274A2

COVER,35mm OD

See Figure 09-09, Ref 41

1шт.

18

313149A1

SEAL

See Figure 09-27, Ref 30

2шт.

19

313150A1

SEAL

See Figure 09-27, Ref 31

1шт.
