Запчасти Case 90XT (09-32A) - DOOR, FRONT - WINDSHIELD (09) - CHASSIS

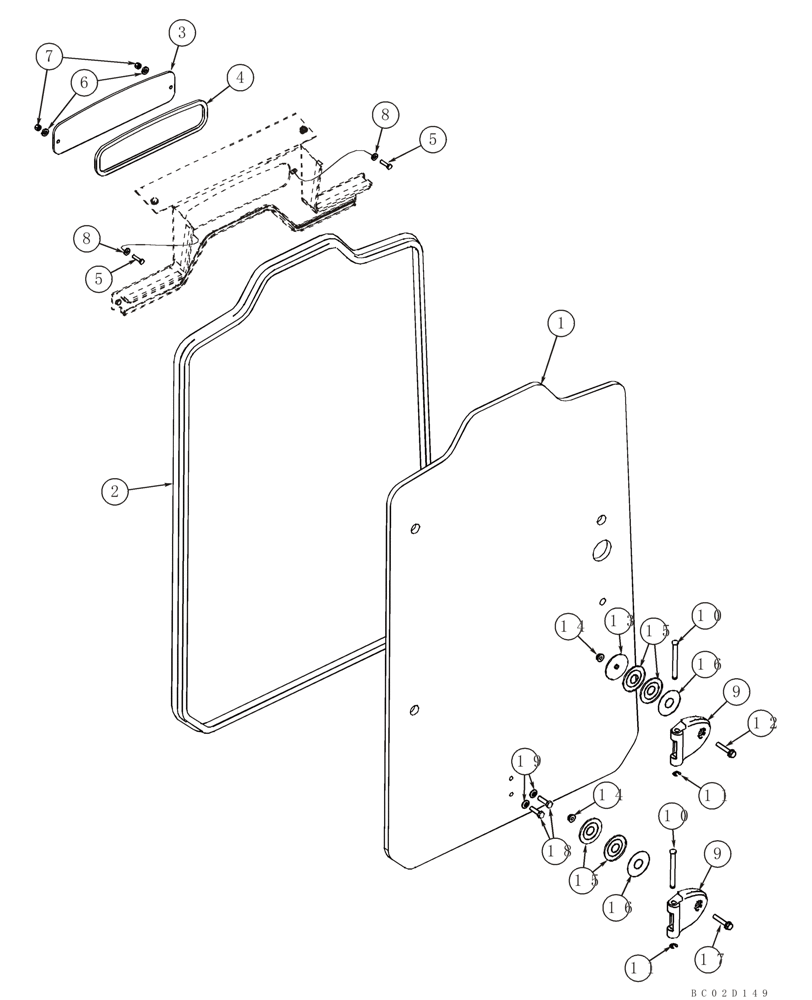

Схема запчастей Case 90XT - (09-32A) - DOOR, FRONT - WINDSHIELD (09) - CHASSIS
15
16
1
13
10
6
4
2
17
9
12
bc02d149
5
11
14
15
5
8
10
16
18
11
3
19
8
14
9
7

Артикул

Название

Примечание

Количество

87449314

SEAL KIT

Windshield, Lexan; Models With Wiper, Incl. Lexan Panel, Seal 405548A1, (4) Cap 441365A1, (3) Screw 86511833, (2) Bolt 86609280 and NSS Washers, Nut and Spacers

1шт.

405548A1

SEAL

Not Illustrated; Part Of Kit 87449314

1шт.

441365A1

CAP

Not Illustrated; Part Of Kit 87449314

4шт.

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

Not Illustrated; Part Of Kit 87449314

3шт.

86609280

BOLT,Hex Flg, M8 x 45mm, Cl 8.8

Not Illustrated; Part Of Kit 87449314

2шт.

1

430672A1

WINDSHIELD

Lexan

1шт.

2

405548A1

SEAL

1шт.

3

402237A1

WINDOW

Door Frame

1шт.

4

394437A3

SEAL, GLASS

Top Window

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

6

103777A1

SEALING WASHER

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

895-30100

WASHER,6.6mm ID x 15mm OD x 1.6mm Thk

6,6 x 15 x 1,6

2шт.

9

304921A1

HINGE

2шт.

10

178819A3

PIN,10mm OD x 94.55mm L

2шт.

11

235754A1

CLIP,ELECTRICAL

2шт.

12

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

13

376332A1

WASHER,9mm ID x 60mm OD x 3.4mm Thk

60 mm OD

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

15

376336A1

RUBBER WASHER

60 mm OD

4шт.

15a

87446347

SPACER

21.5 OD; If Used, Between Ref 15, 16; Not Illustrated

2шт.

16

396848A2

WASHER,22mm ID x 60mm OD x 0.51mm Thk

7/8 x 2-3/8 x 1/16

2шт.

17

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

2шт.

18

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

19

394277A1

SEALING WASHER,7mm ID x 18.5mm OD x 3.5mm Thk

2шт.
