Запчасти Case 90XT (09-27) - CANOPY, ROPS - FRAME AND SEAT BAR (09) - CHASSIS

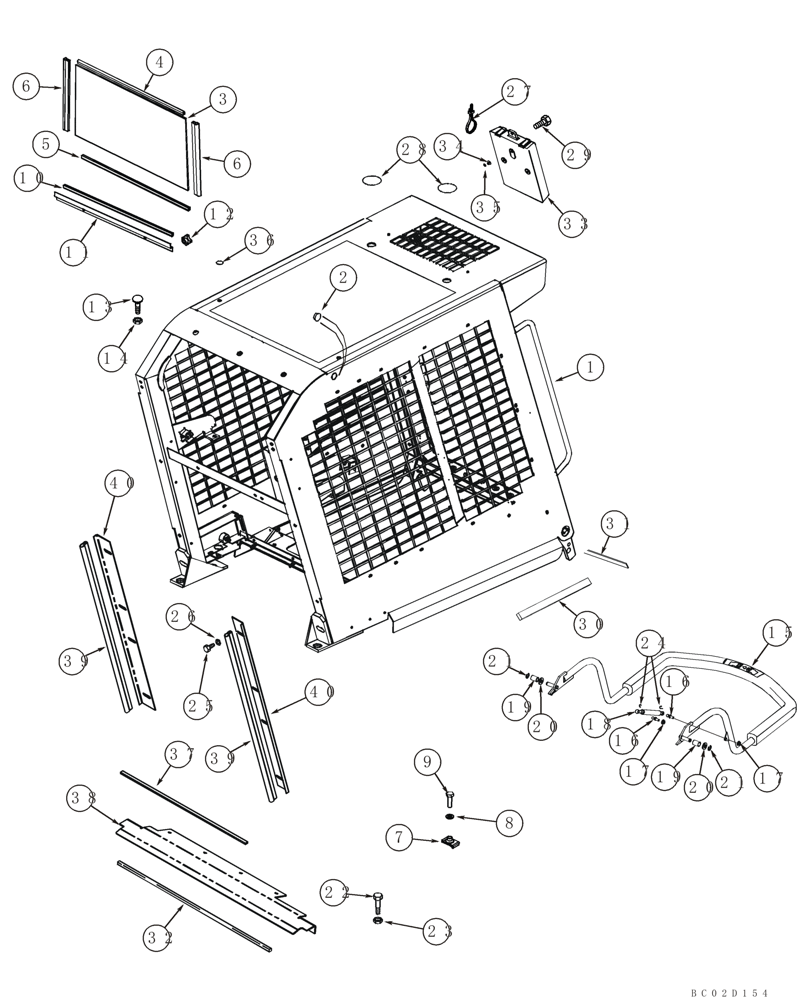

Схема запчастей Case 90XT - (09-27) - CANOPY, ROPS - FRAME AND SEAT BAR (09) - CHASSIS
37
26
14
17
27
32
31
9
23
39
28
15
6
2
36
1
19
10
30
18
17
38
16
8
12
7
bc02d154
13
6
22
34
33
24
21
25
20
11
40
5
21
19
4
35
16
39
3
29
20
40

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MODELS WITH DELUXE HEATER

1шт.

1

430800A1

ROPS; Order Decals Separately; Also Order 4 - 15; Machinery Item; Order From WholeGoods

1шт.

2

353-411

PLUG,Dome, 1.000" hole, Nylon

4шт.

3

373200A1

GLASS

Rear

1шт.

4

373315A1

DOOR SEAL

579 mm (22-13/16 in)

1шт.

5

321275A1

SEAL

587 mm (23-1/8 in)

1шт.

6

373316A1

DOOR SEAL

376 mm (14-13/16 in)

2шт.

7

833-40006

SPRING NUT,M6, U

M6; Not Illustrated

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Not Illustrated

2шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Attaches to Water Valve; Not Illustrated

2шт.

10

333988A1

SEAL

639 mm (25-5/32 in)

1шт.

11

414792A2

BRACKET

1шт.

12

362337A1

KNOB

2шт.

13

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

3шт.

14

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

15

419844A1

BAR

1шт.

16

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

17

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

18

189787A2

SHOCK ABSORBER

1шт.

19

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

21

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

22

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

254307A1

CLIP

2шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Manual, Operators

1шт.

28

293887A1

COVER

70 mm (2-3/4 in); Models With Lift Hooks; See Figure 09-28

2шт.

29

R46463

SCREW,0.18" x 0.75"

1шт.

30

313149A1

SEAL

355 mm (14 in); ROPS, Serial Range: Screen-Chassis

2шт.

31

313150A1

SEAL

774 mm (30-1/2 in); ROPS Side Front Toe Guard

1шт.

32

315083A1

SEALING STRIP

610 mm (40 inch); Window Frame; Europe Only

1шт.

33

R46464

CASE

1шт.

34

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

35

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

36

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm (1 in); Gray

2шт.

37

280491A1

SEAL

2шт.

38

292190A2

COWL

1шт.

39

275066A1

SEAL

1шт.

40

280476A2

ANGLE

1-2шт.

353-400

PLUG,Dome, .250" hole, Nylon

Models with top window; See Figure 09-35

2шт.

Выбрано товаров: 42
