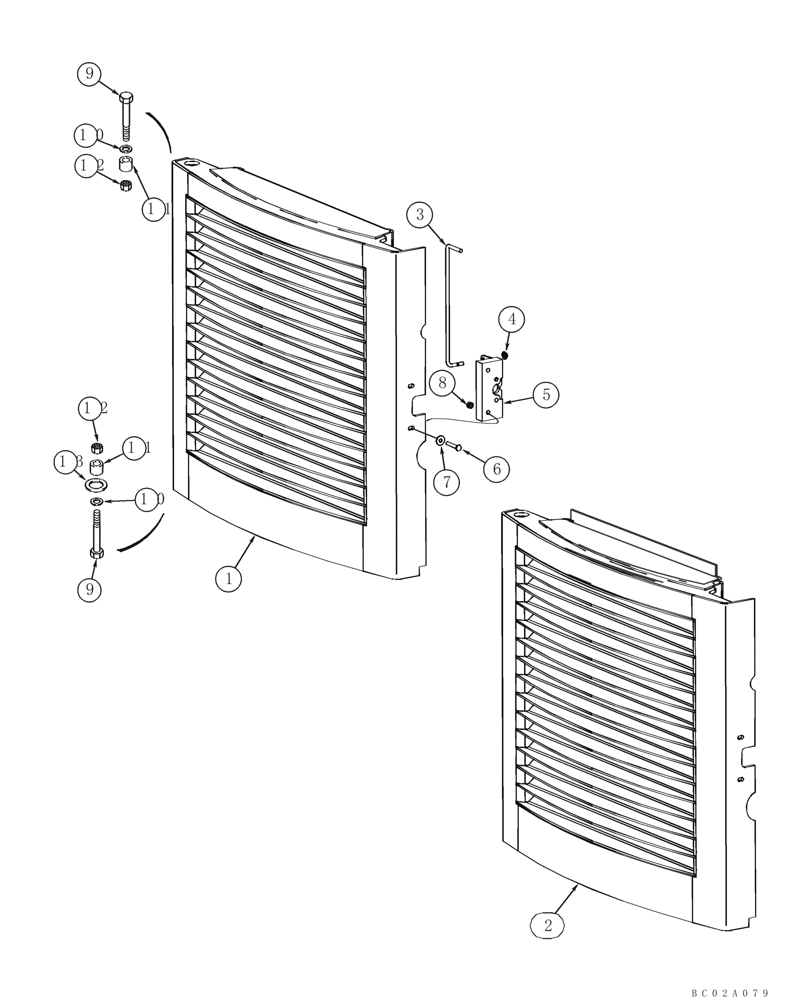

Запчасти Case 90XT (09-17) - DOOR, REAR - WITHOUT SOUNDPROOFING (NORTH AMERICA) (09) - CHASSIS

1

434568A1

DOOR

Rear; Models Without Air Conditioning

1шт.

2

434583A1

DOOR

Rear; Models With Air Conditioning

1шт.

3

434565A1

ROD

Latch Pull

1шт.

4

380751A1

NUT

Push

1шт.

5

R55002

LATCH

1шт.

6

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

8

832-41406

NUT,M6 x 1, Cl 8

2шт.

9

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

2шт.

12

832-41316

NUT,M16 x 2, Cl 10

2шт.

13

248988A1

THRUST WASHER

1шт.
