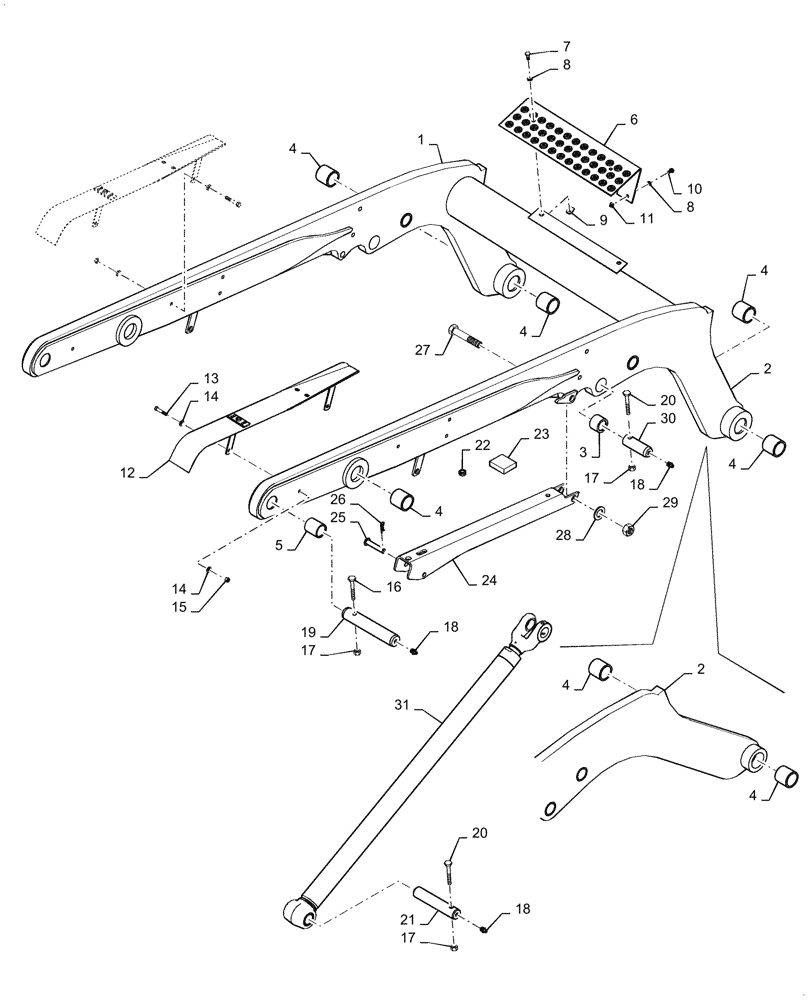

Запчасти Case 90XT (09-01) - FRAME - LOADER LIFT (09) - CHASSIS

282378A1

ARM ASSY.

Loader Arm; Incl. 3, 4; Used In Production; For Service Order 429488A1, REF 1; If Used

1шт.

1

429488A1

ARM

Loader Arm; Incl. 407161A1; With One Bushing At Coupler Point; Incl. 2,3; Incl. Decals; Replaces 307159A1

1шт.

2

NSS

NOT SOLD SEPARAT

Loader Arm; For Service Order 429488A1

1шт.

3

188101A1

BUSHING,38.15mm ID x 48mm OD x 32mm L

4шт.

4

243267A1

BUSHING,45.19mm ID x 55mm OD x 50mm L

4-6шт.

5

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

6

245828A1

SHEET ASSY.

620 mm (24-3/4 in) Wide; Step, Upper; Models With Loader Arm Frame 282378A1

1шт.

6

87620407

PLATE

476 mm (18-3/4 in) Wide; Step Upper; Models With Loader Arm 407161A1; Replaces 87449498, 432328A1

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

Replaces 614-8025

2шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Replaces 895-11008

5шт.

9

833-40008

SPRING NUT,M8, U

2шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

Replaces 614-8016

3шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

12

282376A1

SUPPORT

2шт.

13

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

4шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

15

832-41408

NUT,M8 x 1.25, Cl 10

M8

4шт.

16

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

17

832-41410

NUT,M10 x 1.5, Cl 10

8шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

19

250997A1

PIN,45mm OD x 192mm L

2шт.

20

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

6шт.

21

250998A1

PIN,38mm OD x 192mm L

2шт.

22

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8; No Longer Used, Order 87599604

1шт.

22

87599604

GROMMET

Rubber Grommet, 3/8" ID

1шт.

23

D79692

PAD

1шт.

24

230466A3

STRUT

1шт.

25

86979987

HEADED PIN,1/2" x 3", G5

Replaces 439-5848

1шт.

26

86624096

COTTER PIN,Int, 3/16 x .080"

Replaces 136-159

1шт.

27

814-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

M20 x 90; Right Hand

1шт.

28

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

22 x 37 x 4 mm

1шт.

29

832-41420

NUT,M20 x 2.5, Cl 10

M20

1шт.

30

187216A2

PIN,38mm OD x 96mm L

2шт.

31

308258A2

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 970mm Stroke

57 ID x 970 mm strk; Loader Lift; See Figures 08-11, 08-01

2шт.
