Запчасти Case 90XT (08-26B) - HYDRAULIC SYSTEM - TRENCHER BOOM LIFT (NORTH AMERICA) (08) - HYDRAULICS

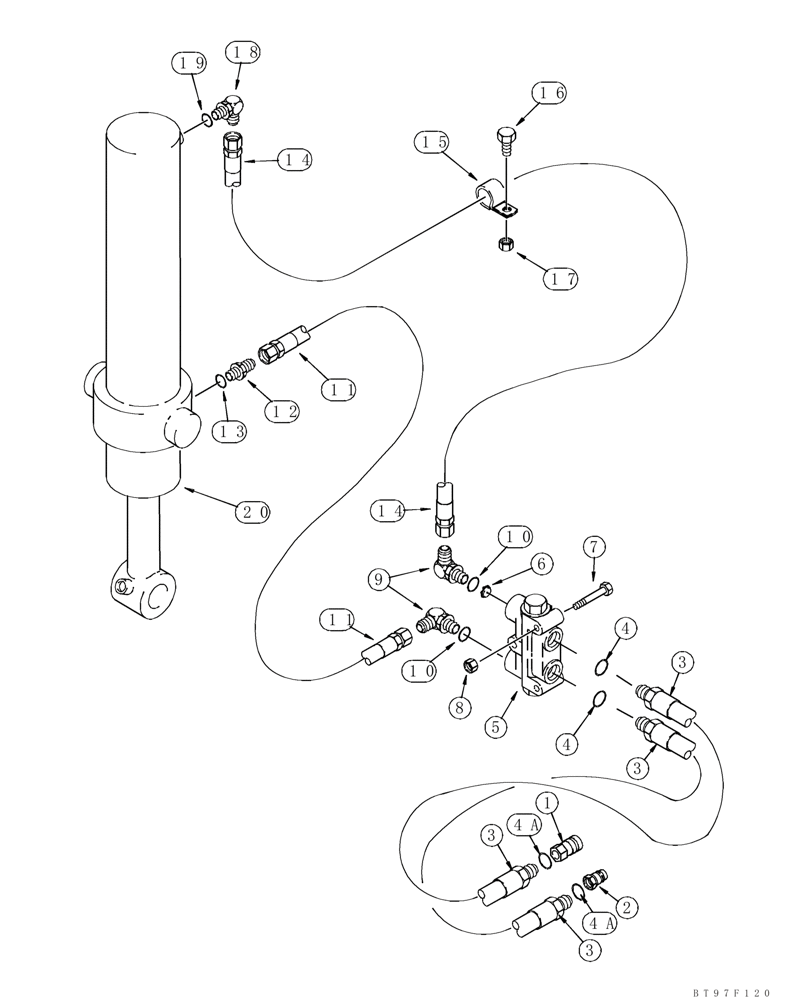

Схема запчастей Case 90XT - (08-26B) - HYDRAULIC SYSTEM - TRENCHER BOOM LIFT (NORTH AMERICA) (08) - HYDRAULICS
10
11
13
3
2
19
12
11
4a
7
16
15
18
3
bt97f120
1
9
3
8
4
10
14
4a
4
17
14
6
3
5
20

Артикул

Название

Примечание

Количество

1

143431A1

COUPLING, QUICK, FEM

Female; See Figure 08-14

1шт.

2

238243A1

COUPLING, BREAK AWAY

Male; See Figure 08-14

1шт.

3

276085A2

HOSE ASSY.

1910 mm (75-1/4 in)

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl. 4

1шт.

4a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

41/64 ID x 3/32

1шт.

5

H672547

VALVE

Incl. 6; See Figure 08-29A

1шт.

6

H270603

ORIFICE

1шт.

7

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

D81836

HOSE

406 mm (16 in)

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 13

1шт.

14

109641A1

HOSE

508 mm (20 in)

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

17

231-5146

FLANGE NUT,3/8"-16

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 19

1шт.

20

221700A1

CYLINDER,Double Acting, 44.45mm Rod, 419.1mm Stroke

89 ID x 165 mm strk; See Figure 08-35A

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
