Запчасти Case 90XT (08-20) - VALVE ASSY, CONTROL - HIGH FLOW (Nov 3 2009 8:28AM) (08) - HYDRAULICS

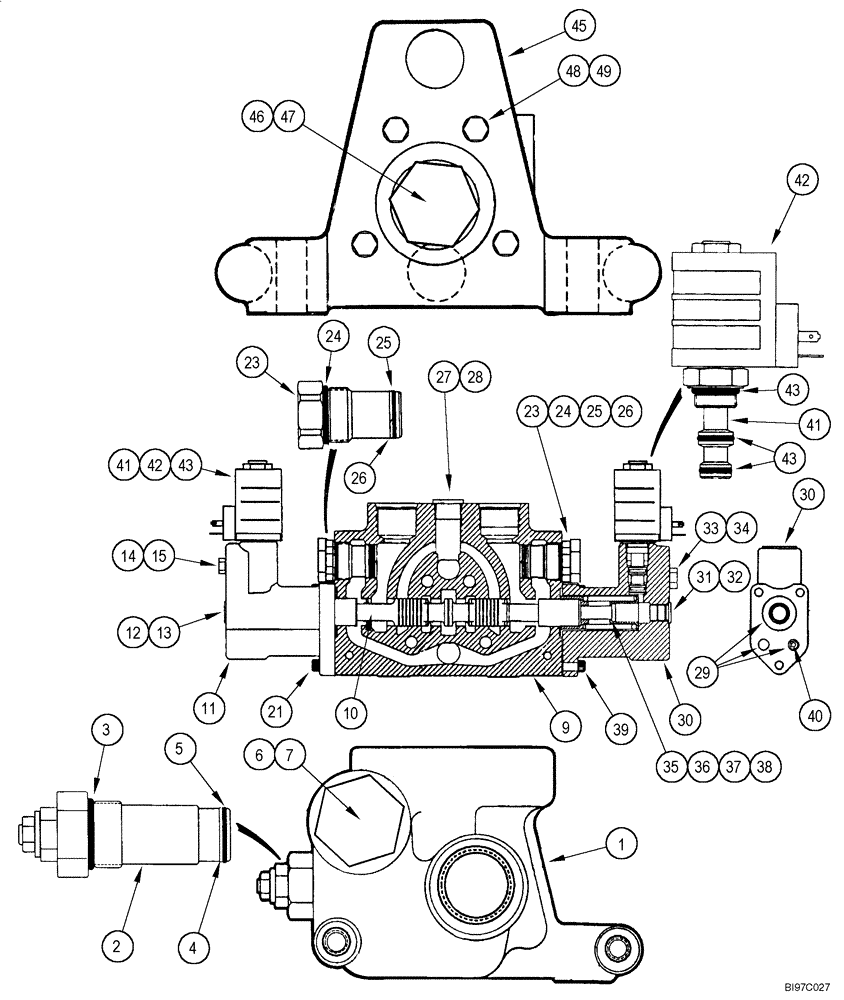

Схема запчастей Case 90XT - (08-20) - VALVE ASSY, CONTROL - HIGH FLOW (Nov 3 2009 8:28AM) (08) - HYDRAULICS
42
24
3
25
4
5
24
11
46
41
23
21
40
36
42
43
43
9
26
13
23
29
38
15
49
25
1
31
6
47
10
33
41
7
30
43
48
26
12
34
28
14
37
30
32
39
45
27
35
2

Артикул

Название

Примечание

Количество

227084A1

VALVE

Incl. 1 - 49

1шт.

245496A1

LARGE PLATE

PLATE, LARGE Cover; Inlet; Incl. 1 - 8

1шт.

1

245501A1

LARGE PLATE

PLATE, LARGE

1шт.

245502A1

VALVE

Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

4

D51530

RING

1шт.

5

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

6

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

245503A1

SEAL KIT

Not Illustrated; Use between the valve covers and the control valve body

1шт.

245497A1

ELEMENT

Incl. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

Body

1шт.

10

NSS

NOT SOLD SEPARAT

Spool

1шт.

245504A1

SOLENOID

Port 'B' End; Incl. 11 - 22

1шт.

11

245509A1

BODY

1шт.

12

76349

PLUG,9/16" - 18 ORB

Incl. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

9672438

PLUG,7/16" - 20 ORB

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

245510A1

SPRING

Not Illustrated; Incl. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

17

NSS

NOT SOLD SEPARAT

Spring

1шт.

18

NSS

NOT SOLD SEPARAT

Plunger

1шт.

19

NSS

NOT SOLD SEPARAT

Stop

1шт.

20

NSS

NOT SOLD SEPARAT

Collar

1шт.

21

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

1/4 x 7/8

3шт.

22

245511A1

SET SCREW

Not Illustrated

1шт.

245506A1

PLUG

Incl. 23 - 26

2шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

1шт.

25

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

26

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

1шт.

27

86512512

PLUG,7/8" - 14 ORB

Incl. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

245507A1

SEAL KIT

Use between the solenoid valves and the control valve body

1шт.

245505A1

SOLENOID

Port 'A' End; Incl. 30 - 40

2шт.

30

245512A1

BODY

1шт.

31

76349

PLUG,9/16" - 18 ORB

Incl. 32

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

9672438

PLUG,7/16" - 20 ORB

Incl. 34

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

245513A1

SPRING

Incl. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

36

NSS

NOT SOLD SEPARAT

Spring

1шт.

37

NSS

NOT SOLD SEPARAT

Plunger

1шт.

38

NSS

NOT SOLD SEPARAT

Collar

1шт.

39

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

1/4 x 7/8

3шт.

40

245511A1

SET SCREW

1шт.

245508A1

SOLENOID VALVE

Cartridge; Incl. 41, 42, 43

1шт.

245516A1

SET OF PARTS

Solenoid; Incl. 42, 43

1шт.

41

NSS

NOT SOLD SEPARAT

Tube

1шт.

245514A1

SOLENOID

Kit, Coil; Incl. 42

1шт.

42

245515A1

COIL ASSY.

12 V

1шт.

43

245517A1

SEAL KIT

Seal

1шт.

44

245503A1

SEAL KIT

Not Illustrated; Use between the valve covers and the control valve body

1шт.

245498A1

LARGE PLATE

PLATE, LARGE Outlet; Incl. 44, 45, 46

1шт.

45

245518A1

LARGE PLATE

PLATE, LARGE

1шт.

46

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 47

1шт.

47

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

245499A1

SET OF PARTS

Incl. 48, 49

1шт.

48

NSS

NOT SOLD SEPARAT

Bolt

4шт.

49

NSS

NOT SOLD SEPARAT

Washer, Lock

4шт.

Выбрано товаров: 63
