Запчасти Case 90XT (08-17) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (May 28 2010 9:46AM) (08) - HYDRAULICS

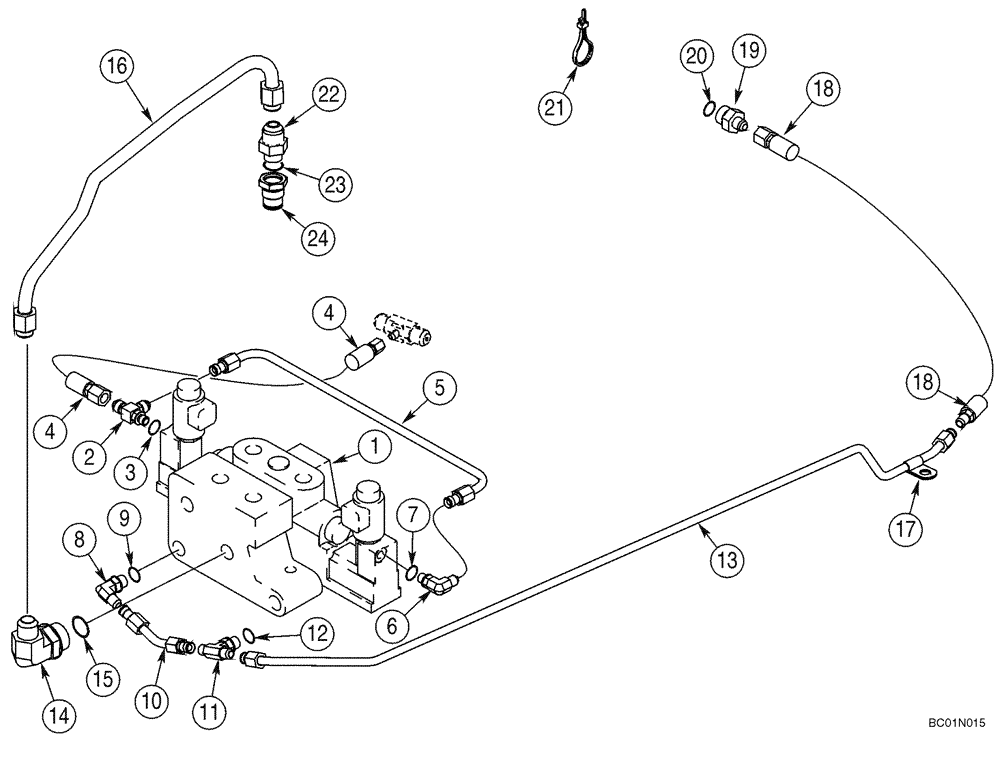

Схема запчастей Case 90XT - (08-17) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (May 28 2010 9:46AM) (08) - HYDRAULICS
3
21
18
4
1
13
5
17
15
23
7
12
4
8
9
11
24
10
19
20
16
22
2
6
18
14

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CHARGE PRESSURE AND PILOT RELIEF LINES

1шт.

1

227084A1

VALVE

Control; See Figure 08-20

1шт.

2

255403A1

TEE

Incl. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

416706A1

HOSE ASSY.

433 mm (17 in); Pilot Return; For Attaching Parts, See Figure 08-19, Ref 3

1шт.

5

254835A4

TUBE,9.53 mm OD, 406, 71 mm Length

Pilot Relief Jumper

1шт.

6

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 9

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

236528A4

TUBE,9.53 mm OD

Charge Jumper

1шт.

11

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 13

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

430866A1

TUBE

Charge Pressure

1шт.

14

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Adj Or, Incl. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

432985A2

TUBE

Replaces 432985A1

1шт.

17

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

18

416423A1

HOSE ASSY.

540 mm (21-1/4 in); Charge Pressure; High Flow

1шт.

19

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

22

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

417368A1

SLEEVE

1шт.
