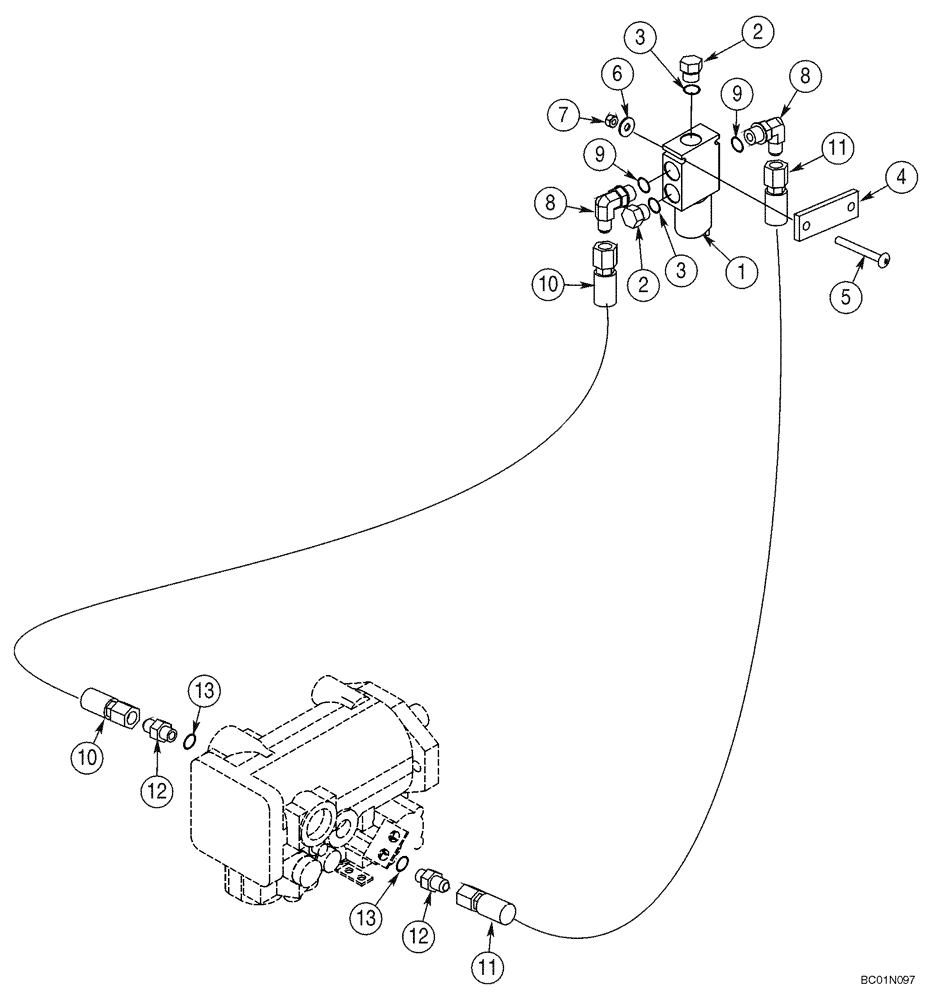

Запчасти Case 90XT (08-14E) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON (08) - HYDRAULICS

REF

INSTRUCTION

SOLENOID

1шт.

1

187505C91

VALVE

See Figure 04-08, Ref 20, 08-13; For Solenoid Harness; See Figure 04-08

1шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. 3

2шт.

4

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

5

811-6060

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8

6 x 60 mm

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

7

832-41406

NUT,M6 x 1, Cl 8

2шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg, 9/16 fl x adj Or; Incl. 9

2шт.

10

431524A2

HOSE ASSY.

1600 mm (63 in)

1шт.

11

431523A2

HOSE ASSY.

1300 mm (51-3/16 in)

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 13

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
