Запчасти Case 90XT (08-14A) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON (Aug 13 2010 12:42PM) (08) - HYDRAULICS

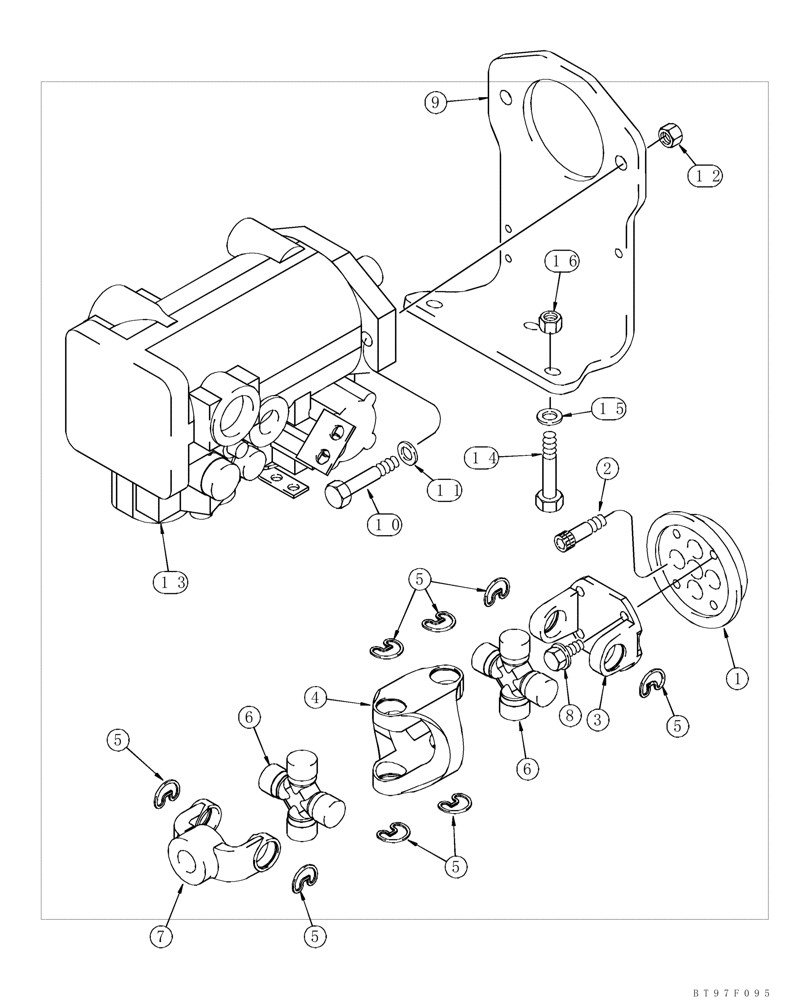

Схема запчастей Case 90XT - (08-14A) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON (Aug 13 2010 12:42PM) (08) - HYDRAULICS
3
1
5
5
2
11
13
5
15
12
10
7
9
5
bt97f095
14
6
8
5
4
6
16

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PISTON PUMP AND UNIVERSAL JOINT

1шт.

1

251921A1

RING, COUPLING

To Crankshaft

1шт.

2

561-800

HEX SOC SCREW,M12 x 1.25 x 35mm, Cl 12.9

M12 x 35

4шт.

251893A2

UNIVERSAL JOINT

Incl. 3 - 7

1шт.

3

256197A1

FLANGE

1шт.

4

282838A1

YOKE

1шт.

5

11256

SNAP RING

8шт.

6

256198A1

U-JOINT SPIDER

2шт.

7

295551A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

8

380-2616

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8, Full Thd

3/8 x 1

4шт.

9

251922A2

SUPPORT

1шт.

10

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

11

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

12

832-41412

NUT,M12 x 1.75, Cl 10

M12

2шт.

13

237637A3

PUMP, HYDRAULIC,46 CC

See Figure 08-14F - 08-14H

1шт.

13

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

13

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

14

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

15

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5mm

6шт.

16

832-41412

NUT,M12 x 1.75, Cl 10

M12

3шт.

Выбрано товаров: 20
