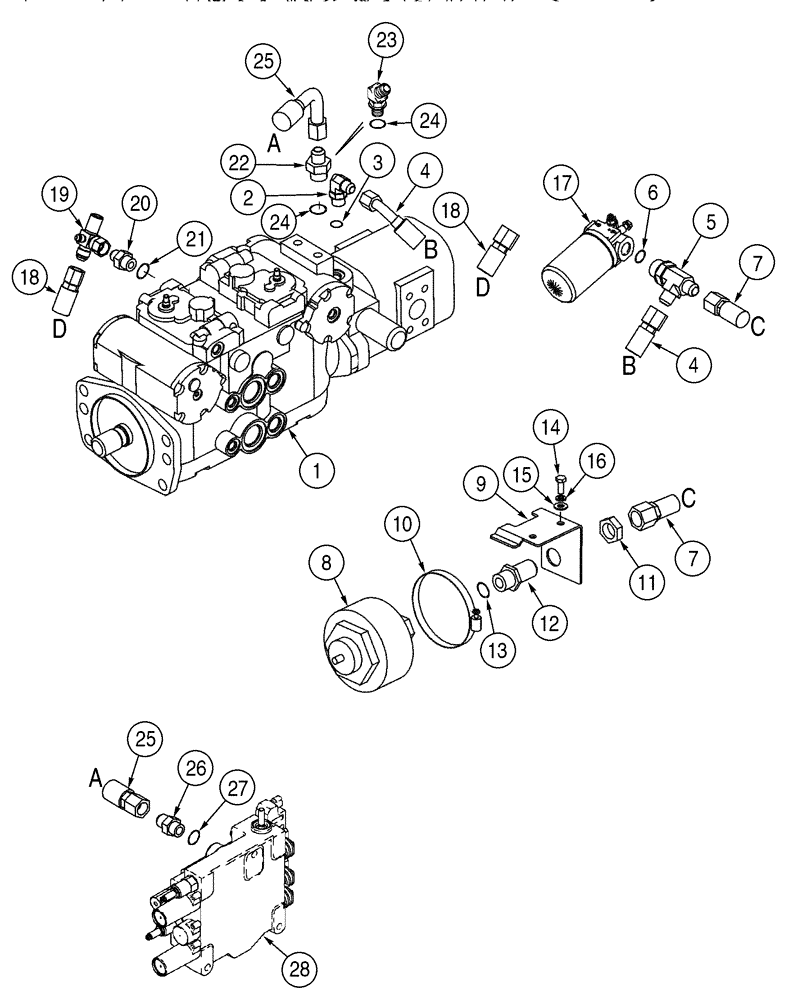

Запчасти Case 90XT (06-04) - HYDROSTATICS PUMP, SUPPLY AND RETURN, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (06) - POWER TRAIN

*

Tandem Pump and Control Valve To Filters

1шт.

1

433903A1

PUMP

See Figure 6-15, Includes: Ref. 3

1шт.

1

87297990

REMAN-HYD PUMP

1шт.

1

87297991

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of P/N 433903A1

1шт.

4

419050A1

HOSE ASSY.

940 mm (37 in), Pump To Charge Filter

1шт.

5

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 218-5294

1шт.

7

427033A1

HOSE ASSY.

445 mm (17-17/32 in), Accumulator To Charge Filter

1шт.

8

369034A1

1шт.

9

427077A1

ANGLE

1шт.

10

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

11

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

12

126155A1

FITTING

1-1/16 blkhd fl x or, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 126155A1

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

17

222757A1

FILTER ASSY

See Figure 6-13

1шт.

18

419051A1

HOSE ASSY.

1200 mm (47-1/4 in), For Attaching Parts, See Page 6-25D, Ref. 26

1шт.

19

296384A1

FITTING

1шт.

20

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 or, Includes: Ref. 24

1шт.

23

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj or, Incl. Ref 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N's 218-5063, 218-5149

1шт.

25

435082A1

HOSE ASSY.,15.88mm ID x 470mm L

470 mm (18-1/2 in)

1шт.

26

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

28

REF

INSTRUCTION

VALVE, Control, See Figures 8-15, 8-16, 8-17, 8-19

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
