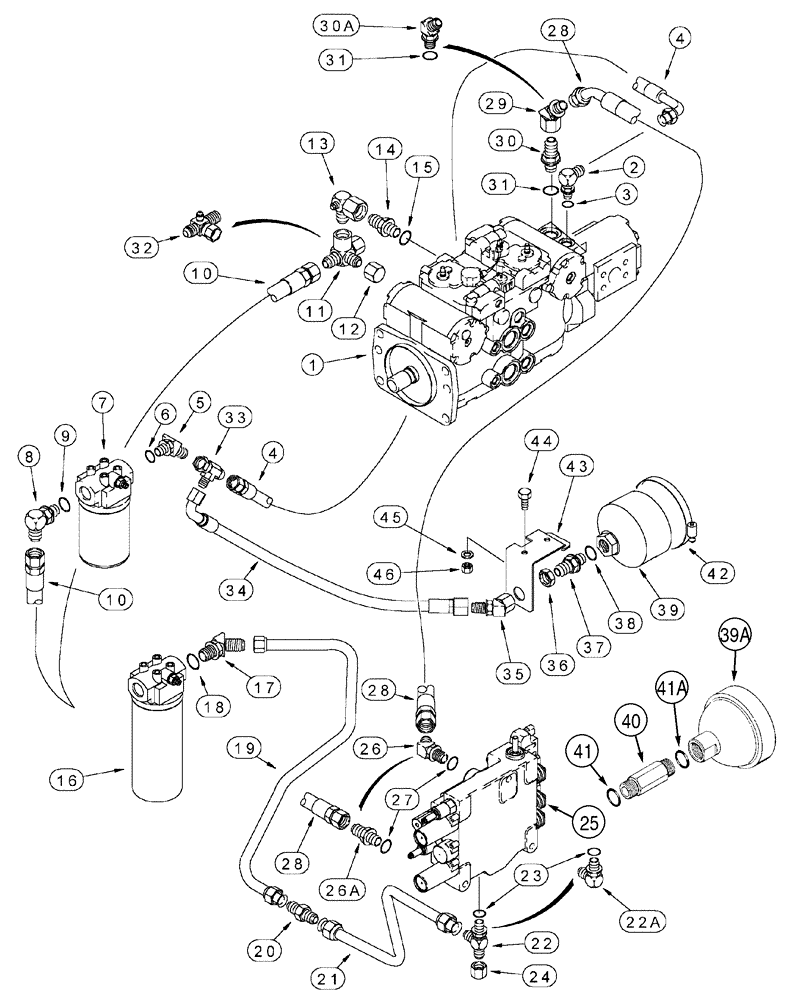

Запчасти Case 90XT (06-03) - HYDROSTATICS PUMP, SUPPLY AND RETURN, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (06) - POWER TRAIN

Tandem Pump and Control, Serial Range: Valve-Filters

1шт.

1

REF

INSTRUCTION

PUMP Tandem, See Figure 6-19

1шт.

2

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. Ref. 3

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

222920A2

HOSE ASSY.

520 mm (20-1/2 in)

1шт.

5

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. Ref. 6

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

222757A1

FILTER ASSY

Charge, See Figure 6-13

1шт.

8

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. Ref. 9

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

222921A2

HOSE

825 mm (32-1/2 in)

1шт.

11

H435873

TEE

If Equipped, Used With 12, 13

1шт.

12

262159

CAP,3/4" - 16 Fem JIC

If Equipped, Used With 11, 13

1шт.

13

231697A1

ELBOW

If Equipped, Used With 11, 12

1шт.

14

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl. Ref. 15

1шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

222756A2

FILTER ASSY

Return, See Figure 6-13

1шт.

17

22907

ELBOW,0.50" ID x 175.00", SAE J517, SAE J516, SAE J846, SAE J1273

Incl. Ref. 18, For Models With Gear High Flow Hydraulics, See Page(s) 8-163, Ref. 19

1шт.

18

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

277146A3

TUBE,416, 159 mm Length

Replaces: 277146A2, For Models With Hear High Flow Hydraulics, See Page(s) 8-163, Ref. 18

1шт.

20

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

21

257903A4

TUBE,381, 218 mm Length

1шт.

22

257868A1

TEE

Incl. Ref. 23

1шт.

22a

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

Incl. Ref. 23

1шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

129200

CAP,7/8" - 14 JIC

For Models With Piston High Flow Hydraulics, See Page 8-121, Ref. 14, For Models With Hear High Flow Hydraulics, See Page(s) 8-173, Ref. 2

1шт.

25

REF

INSTRUCTION

VALVE, Control, See Figures 8-15, 8-16, 8-17, 8-19

1шт.

26

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl. Ref. 27

1шт.

26a

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref. 27

1шт.

27

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

276898A2

HOSE ASSY.

580 mm (22-7/8 in), Replaces 282491A1

1шт.

29

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref. 29A

1шт.

29

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. Ref. 29A, Emissions Certified Engine

1шт.

29a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated

1шт.

30

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

No Longer Used, Order 330344, Incl. Ref. 31

1шт.

30a

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. Ref. 31

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

296384A1

FITTING

Replaces Ref. 11, 12, 13

1шт.

Models With Accumulator, If Equipped

1шт.

304063A1

SET OF PARTS

Accumulator, Consists Of 33 - 46

1шт.

33

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

1шт.

34

303429A1

HOSE ASSY.

915 mm (36 in)

1шт.

35

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

36

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

37

126155A1

FITTING

Incl. Ref. 38

1шт.

38

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

39

369034A1

PRODUCTION Only, Replaces 1342628C2, Order 39A

1шт.

39a

117941A2

ACCUMULATOR

Service, Incl. Ref. 40, 41, Replaces 117941A1

1шт.

40

116371A1

FITTING

Not Used In This Application

1шт.

41

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Not Used In This Application

2шт.

42

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

1шт.

43

311735A1

SUPPORT

1шт.

44

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

46

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

47

87016617

LOCK WASHER,M8

Not Illustrated

2шт.

45

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
