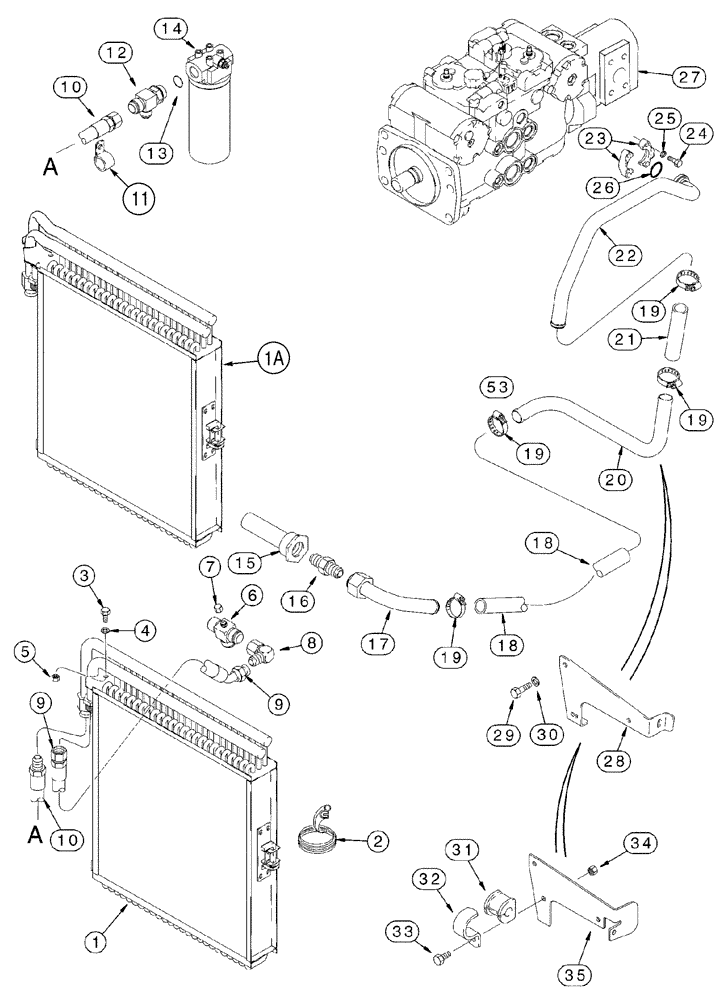

Запчасти Case 90XT (06-01) - HYDROSTATICS PUMP, SUPPLY AND RETURN, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (06) - POWER TRAIN

1

237994A2

COOLER, OIL

Replaces: 237994A1; With Turbulators, Behr# BM20561 And Core Length Of 20-1/4"

1шт.

1a

301685A1

COOLER, OIL

Emissions Certified Engine; Without Turbulators, Behr# BM20566 And Core Length Of 21.03"

1шт.

1b

393188A1

OIL COOLER

European Models, Not Illustrated; Without Turbulators, Vender# 1E4958D And Core Length Of 20-1/4"

1шт.

2

230745A1

RUBBER SEAL,512mm L

512 mm

8шт.

2

304908A1

SEAL

535 mm, European Models, With HVAC, Emissions Certified Engine

4шт.

2

230746A1

SEAL

485 mm, European Models

4шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Emissions Certified Engine, European Models

2шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

257614A1

TEE,1-5/16" - 12 JIC x 1-5/16" - 12 JIC x 1" - 11-1/2 NPT

No Longer Used, Order 218-618, For Attaching Parts, See This Figure, Ref. 7A

1шт.

7

218-754

CAP,37 Degree, 9/16"-18

No Longer Used, Order 218-618

1шт.

7a

218-618

TEE,1 1/16"-12, 37º x 1"-11 1/2, NPTF Run

1шт.

8

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1-5/16 fl x sw, Used With Ref. 9

1шт.

9

277451A1

HOSE

670 mm (26-3/8 in), For Models With Piston High Flow Hydraulics, See Page 8-115, Ref. 24, For Models With Gear High Flow Hydraulics, See Figure 8-44, Ref. 1

1шт.

10

242592A3

HOSE

1600 mm (63 in), North American Models

1шт.

10

393573A1

HOSE

1645 mm (64 in), European Models

1шт.

11

515-22349

CLAMP,1 3/8", Insul, 5/16" Bolt

1-3/8 ID

1шт.

12

254524A1

TEE

Includes: Ref. 13, For Attaching Parts, See Page(s) 6-17, Ref. 1

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

222756A2

FILTER ASSY

Return, See Figure 6-14

1шт.

15

189310A1

STRAINER ASSY.

1шт.

16

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

1-5/8 fl x 1-1/4 PT, No Longer Used, Order 217-157

1шт.

16a

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

1-1/4 Stem x PT

1шт.

17

194853A1

TUBE,31.8 mm OD

Order 335926A1

1шт.

18

252723A1

HOSE

610 mm (24 in), No Longer Used, Order 335926A1

1шт.

18a

335926A1

HOSE ASSY.

830 mm (32-1/4 in)

1шт.

19

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

20

256314A1

TUBE

1шт.

21

256406A1

HYDRAULIC HOSE

115 mm (4-1/2 in)

1шт.

22

276587A1

TUBE,238, 225 mm Length

1шт.

23

A12301

CLAMP,Half

2шт.

24

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

25

492-11044

LOCK WASHER,7/16"

4шт.

26

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

27

REF

INSTRUCTION

PUMP Tandem, See Figure 6-15

1шт.

28

256405A1

SUPPORT

If Equipped

1шт.

29

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

31

D67298

INSULATOR

Used With 35

2шт.

32

302287A1

CLAMP

Used With 35

2шт.

33

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Used with 35

2шт.

34

832-41310

NUT,M10 x 1.5, Cl 10

Used with 35

2шт.

35

295628A1

SUPPORT

If Equipped

1шт.
