(04-33) - MOUNTING LAMP ASSEMBLY, COMBINATION, REAR

Запчасти Case 90XT (04-33) - MOUNTING LAMP ASSEMBLY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS

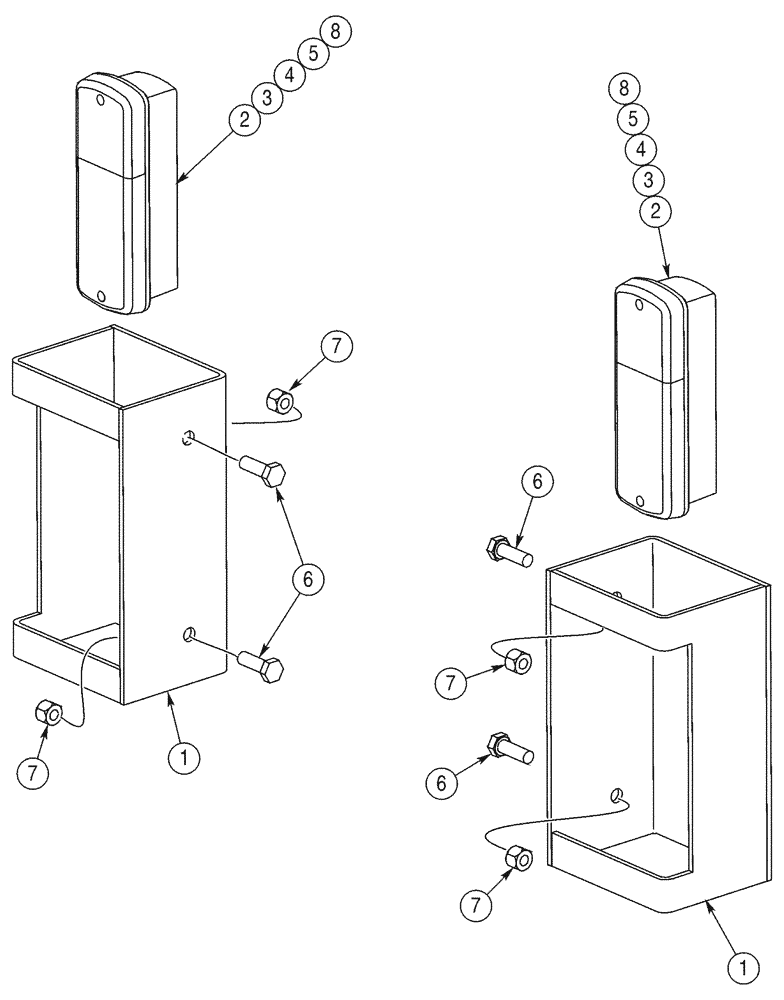

Схема запчастей Case 90XT - (04-33) - MOUNTING LAMP ASSEMBLY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS
4
8
3
6
6
6
5
7
5
2
3
2
1
4
7
7
1
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

379888A1

SUPPORT

2шт.

2

177239A2

LAMP, TAIL

LIGHT, TAIL Combination, Includes: Ref. 3 - 5

2шт.

3

187140A1

LENS

1шт.

Part of P/N 177239A2

1шт.

4

3131227R1

BULB,P25-1, 12V, 21W

Turn Signal

1шт.

Part of P/N 177239A2

1шт.

5

3131234R1

BULB,P25-2, 12V, 5W

Stop and Tail

1шт.

Part of P/N 177239A2

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

2шт.
