Запчасти Case 90XT (04-32) - MOUNTING LAMP ASSEMBLY, COMBINATION, FRONT (04) - ELECTRICAL SYSTEMS

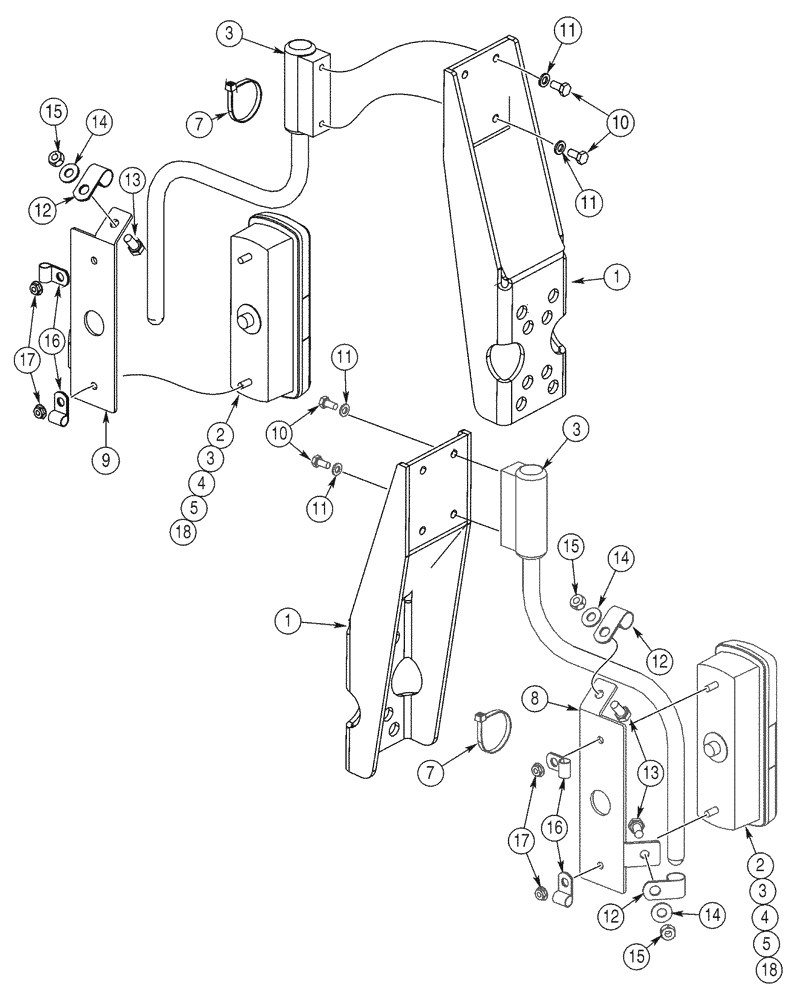

Схема запчастей Case 90XT - (04-32) - MOUNTING LAMP ASSEMBLY, COMBINATION, FRONT (04) - ELECTRICAL SYSTEMS
2
12
10
11
3
2
14
18
12
3
10
13
11
3
4
16
15
8
11
15
15
12
5
7
4
11
13
7
17
17
9
5
14
1
16
14
18
3
1

Артикул

Название

Примечание

Количество

1

305398A1

SUPPORT

2шт.

2

233152A2

LIGHT

Combination, Includes: Ref. 3 - 5

2шт.

3

282074A1

LENS

1шт.

Part of P/N 233152A2

1шт.

4

3131227R1

BULB,P25-1, 12V, 21W

Turn Signal

1шт.

Part of P/N 233152A2

1шт.

5

71421

BULB,R5W, 12V, 5W

Position

1шт.

Part of P/N 233152A2

1шт.

6

310860A1

SUPPORT

Mounting

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

8

308570A1

SUPPORT

1шт.

9

308571A1

SUPPORT

1шт.

10

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

13

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

15

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

16

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

17

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

18

277904A1

ELEC CONNECTOR,Female, 4 Pin

2шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 21
