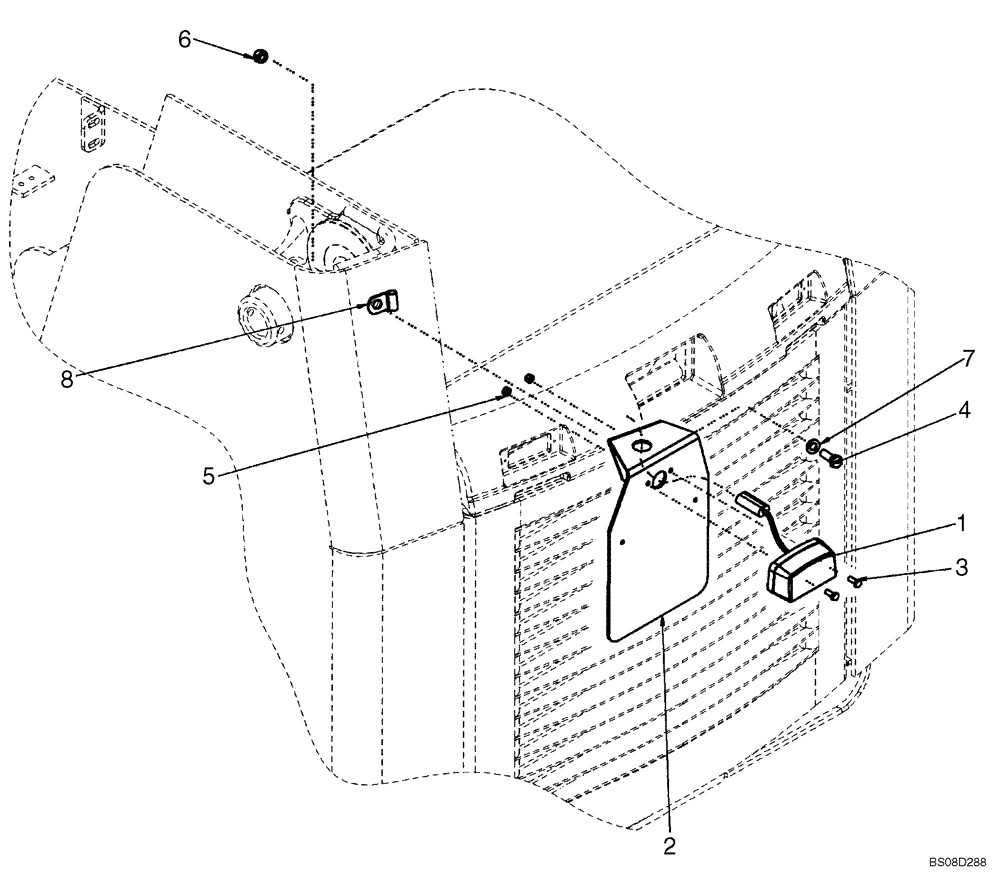

Запчасти Case 90XT (04-30) - MOUNTING - LAMP, LICENSE PLATE (EUROPE) (04) - ELECTRICAL SYSTEMS

1

120229A1

LIGHT

Assembly; License Plate

1шт.

2

297099A1

PLATE ASSY.

1шт.

3

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

5

353308

NUT,M6 x 1.0, Cl 8

2шт.

6

87030549

NUT,M10 x 1.5, Cl 10

1шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.
