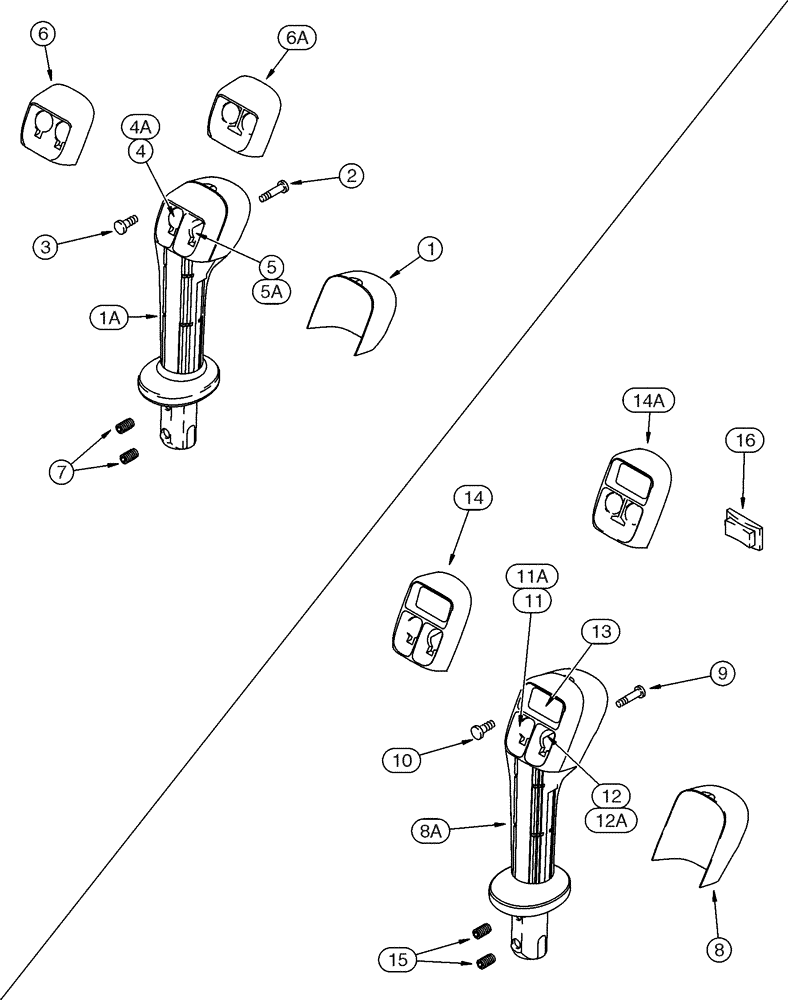

Запчасти Case 90XT (04-27) - CONTROLS, LEFT HAND HANDLE, TWO SWITCH, BRAKE, TWO SPEED (04) - ELECTRICAL SYSTEMS

227983A2

HANDLE

Left Hand, Two Switch, Consists Of: 1 - 7, Brake, Two Speed

1шт.

1

291792A1

CAP

Two Switch, Brake, Two Speed

1шт.

1a

NSS

NOT SOLD SEPARAT

HANDLE Control, Two Switch, Brake, Two Speed

1шт.

2

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Two Switch, Brake, Two Speed

1шт.

3

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Two Switch, Brake, Two Speed

3шт.

4

291800A1

SWITCH

Brake, No Longer Available, Order 4A, 5A, 6A, Two, Two Speed

1шт.

4a

303892A1

SWITCH

Brake, Two, Two Speed

1шт.

5

291801A1

SWITCH

Two Speed, No Longer Available, Order 4A, 5A, 6A, Two, Brake

1шт.

5a

303891A1

SWITCH

Two Speed, Two, Brake

1шт.

6

291796A1

PLASTIC PLATE

No Longer Available, Order 6A, Two Switch, Brake, Two Speed

1шт.

6a

291796A2

PLASTIC PLATE

Two Switch, Brake, Two Speed

1шт.

7

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Two Switch, Brake, Two Speed

2шт.

233435A3

HANDLE

Left Hand, Three Switch, Consists Of: 8 - 15, Brake, Two Speed, High Flow

1шт.

8

291793A1

CAP

Three Switch, Brake, Two Speed, High Flow

1шт.

8a

NSS

NOT SOLD SEPARAT

HANDLE Control, Three Switch, Brake, Two Speed, High Flow

1шт.

9

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Three Switch, Brake, Two Speed, High Flow

1шт.

10

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Three Switch, Brake, Two Speed, High Flow

3шт.

11

291800A1

SWITCH

Brake, No Longer Available, Order 11A, 12A, 14A, Three, Two Speed, High Flow

1шт.

11a

303892A1

SWITCH

Brake, Three, Two Speed, High Flow

1шт.

12

291801A1

SWITCH

Two Speed, No Longer Available, Order 11A, 12A, 14A, Three, Brake, High Flow

1шт.

12a

303891A1

SWITCH

Two Speed, Three, Brake, High Flow

1шт.

13

291804A1

SWITCH

High Flow, Three, Brake, Two Speed

1шт.

14

291797A1

PLASTIC PLATE

No Longer Available, Order 14A, Three Switch, Brake, Two Speed, High Flow

1шт.

14a

291797A2

PLASTIC PLATE

Three Switch, Brake, Two Speed, High Flow

1шт.

15

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Three Switch, Brake, Two Speed, High Flow

2шт.

16

303893A1

BOOT

Three Switch, Brake, Two Speed, High Flow

1шт.
