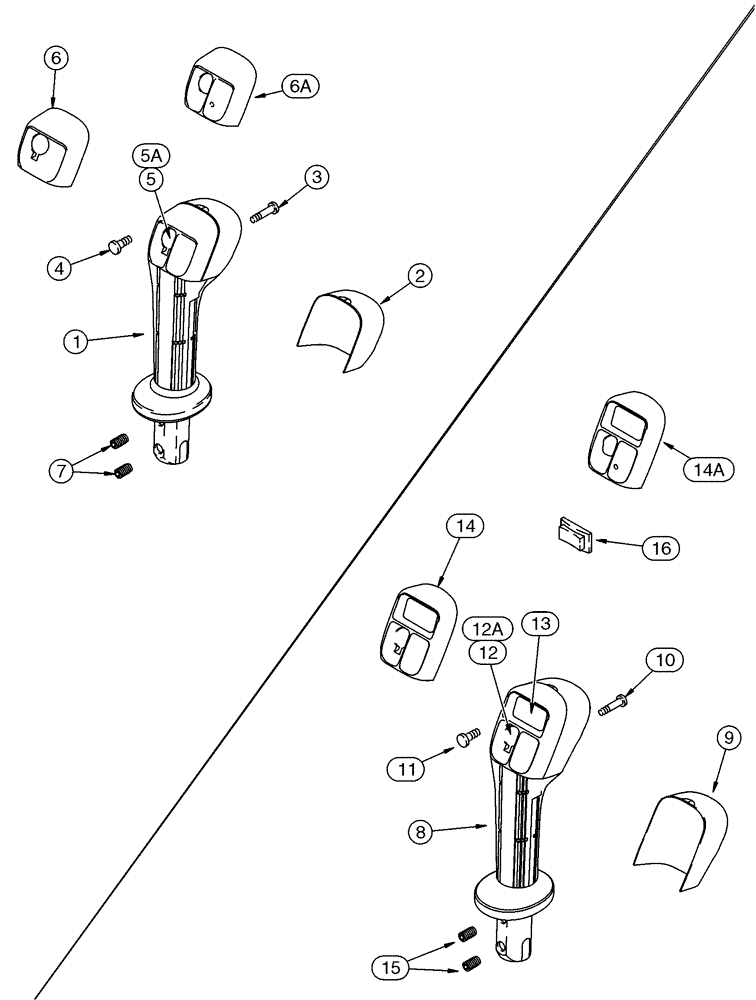

Запчасти Case 90XT (04-26) - CONTROLS, LEFT HAND HANDLE, SINGLE SWITCH, BRAKE (04) - ELECTRICAL SYSTEMS

235765A2

HANDLE

Left Hand, Single Switch, Brake, Consists Of: 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HANDLE Control, Single Switch, Brake

1шт.

2

291792A1

CAP

Single Switch, Brake

1шт.

3

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Single Switch, Brake

1шт.

4

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Single Switch, Brake

3шт.

5

291800A1

SWITCH

Brake, Single, No Longer Available, Order 5A, 6A

1шт.

5a

303892A1

SWITCH

Brake, Single

1шт.

6

291795A1

PLASTIC PLATE

No Longer Available, Order 6A, Single Switch, Brake

1шт.

6a

291795A2

PLASTIC PLATE

Single Switch, Brake

1шт.

7

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Single Switch, Brake

2шт.

235909A3

HANDLE

Left Hand, Two Switch, Brake, High Flow, Consists Of: 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

HANDLE, Control, Two Switch, Brake, High Flow

1шт.

9

291793A1

CAP

Two Switch, Brake, High Flow

1шт.

10

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Two Switch, Brake, High Flow

1шт.

11

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Two Switch, Brake, High Flow

3шт.

235909A3

HANDLE

Left Hand, Two Switch, Brake, High Flow, Consists Of: 8 - 15

1шт.

12

291800A1

SWITCH

Brake, Two, High Flow, No Longer Available, Order 12A, 14A

1шт.

12a

303892A1

SWITCH

Brake, Two, High Flow

1шт.

13

291804A1

SWITCH

High Flow, Two, Brake

1шт.

14

291798A1

PLASTIC PLATE

No Longer Available, Order 14A, Two Switch, Brake, High Flow

1шт.

14a

291798A2

PLASTIC PLATE

Two Switch, Brake, High Flow

1шт.

15

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

16

303893A1

BOOT

Rocker Switch, Two, Brake, High Flow

1шт.
