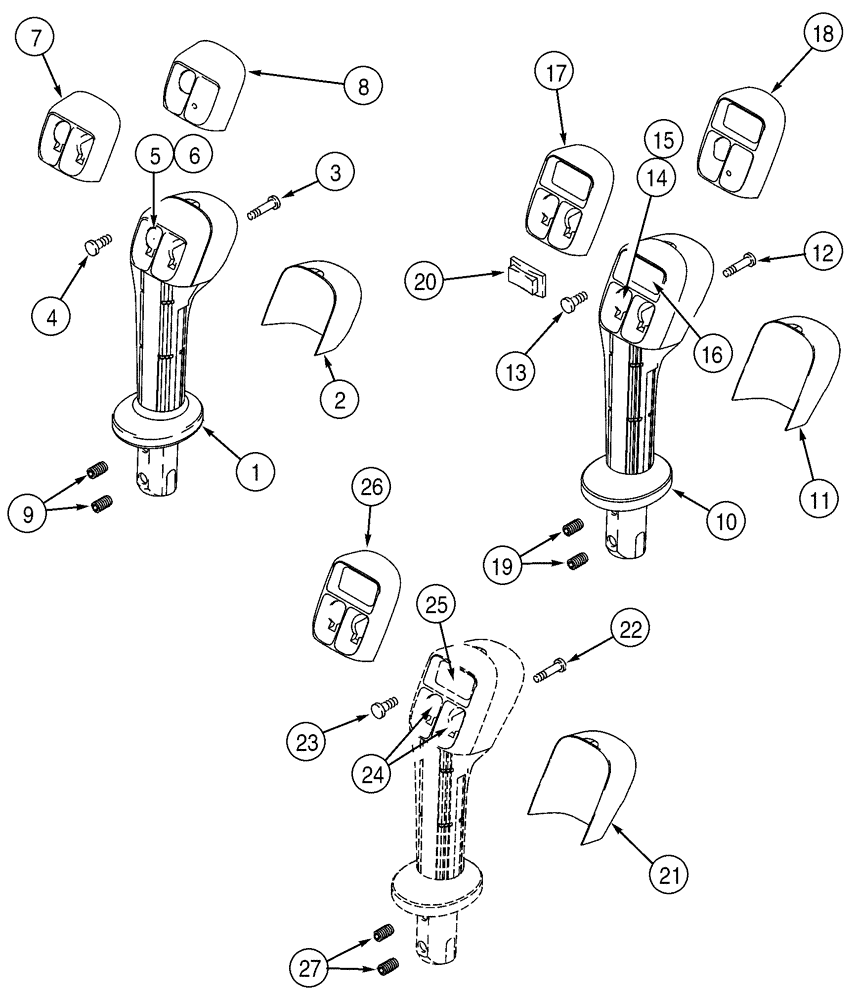

Запчасти Case 90XT (04-25) - CONTROLS, RIGHT HAND HANDLE, SINGLE SWITCH, HORN (04) - ELECTRICAL SYSTEMS

235766A2

HANDLE

Right Hand, Single Switch, Horn, Consists Of: 7 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

HANDLE Control, Single Switch, Horn

1шт.

2

291792A1

CAP

Single Switch, Horn

1шт.

3

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Ssingle Switch, Horn

1шт.

4

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Single Switch, Horn

3шт.

5

291801A1

SWITCH

Horn, No Longer Available, Order 11A, 12A, Single Switch

1шт.

6

303891A1

SWITCH

Horn, Single Switch

1шт.

7

291795A1

PLASTIC PLATE

No Longer Available, Order 12A, Single Switch, Horn

1шт.

8

291795A2

PLASTIC PLATE

Single Switch, Horn

1шт.

9

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Single Switch, Horn

2шт.

233436A2

HANDLE

Right Hand, Two Switch, Horn, Turn Signal, Consists Of: 14 - 21, If Used

1шт.

379500A1

HANDLE

Right Hand, Two Switch, Horn, Turn Signal, Consists Of: 14 - 21, If Used

1шт.

10

NSS

NOT SOLD SEPARAT

HANDLE Control, Two Switch, Horn, Turn Signal

1шт.

11

291793A1

CAP

Two Switch, Horn, Turn Signal

1шт.

12

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Two Switch, Horn, Turn Signal

1шт.

13

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Two Switch, Horn, Turn Signal

3шт.

14

291801A1

SWITCH

Horn, No Longer Available, Order 18A, 20A, Two Switch, Turn Signal

1шт.

15

303891A1

SWITCH

Horn, Two Switch, Turn Signal

1шт.

16

291802A1

SWITCH

Turn Signal Or Auxiliary Electric, Two Switch, Horn

1шт.

17

291798A1

PLASTIC PLATE

No Longer Available, Order 20A, Two Switch, Horn, Turn Signal

1шт.

18

291798A2

PLASTIC PLATE

Two Switch, Horn, Turn Signal

1шт.

19

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Two Switch, Horn, Turn Signal

2шт.

20

303893A1

BOOT

Rocker Switch, Two Switch, Horn, Turn Signal

1шт.

308598A1

HANDLE

Right Hand, Three Switch, Horn, Turn Signal, Ride Control, Consists Of: 8 - 15, If Used

1шт.

379501A1

HANDLE

Right Hand, Three Switch, Horn, Turn Signal, Ride Control, Consists Of 8 - 15, If Used

1шт.

21

291793A1

CAP

Three Switch, Horn, Turn Signal, Ride Control

1шт.

22

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Three Switch, Horn, Turn Signal, Ride Control

1шт.

23

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Three Switch, Horn, Turn Signal, Ride Control

3шт.

24

303891A1

SWITCH

Horn, Ride Control, Three Switch, Turn Signal, Replaces: 291801A1

2шт.

25

291802A1

SWITCH

Turn Signal, Three Switch, Horn, Ride Control

1шт.

26

291797A1

PLASTIC PLATE

Three Switch, Horn, Turn Signal, Ride Control

1шт.

27

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Three Switch, Horn, Turn Signal, Ride Control

2шт.
