Запчасти Case 90XT (04-24) - WIPER, WINDSHIELD, NORTH AMERICAN MODELS JAF032050-, EUROPEAN MODELS JAF0274262- (04) - ELECTRICAL SYSTEMS

1

398129A1

KIT

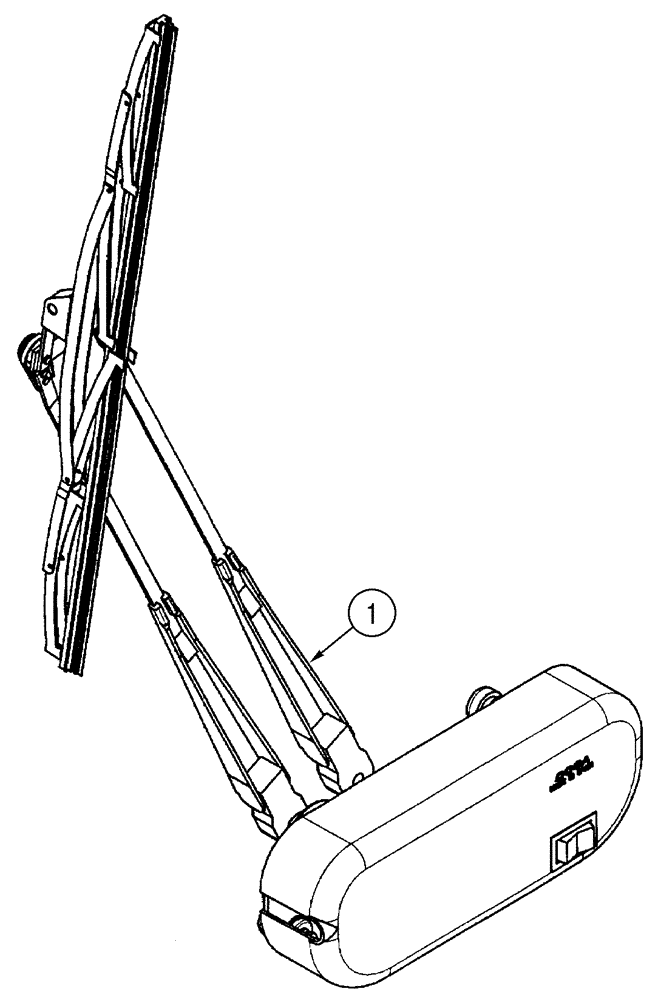

Windshield Wiper Front, See Figure 9-45, Includes: Ref. 2 - 10, Components Not Illustrated

1шт.

2

442669A1

WIPER MOTOR

MOTOR, WIPER 12V, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

COVER

1шт.

Part of P/N 442669A1

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS

1шт.

Part of P/N 442669A1

1шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

Part of P/N 442669A1

1шт.

6

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

Part of P/N 442669A1

1шт.

7

442670A1

WIPER ARM

ARM, WIPER 450 mm (17-3/4 in); Spray Nozzle Is Not Serviced Separately, Must Order Arm Assy

1шт.

8

442671A1

WIPER BLADE

BLADE, WIPER 500 mm (19-11/16 in)

1шт.

9

442673A1

HOSE,915.00 mm

1шт.

10

442672A1

GROMMET

9 mm ID

2шт.
