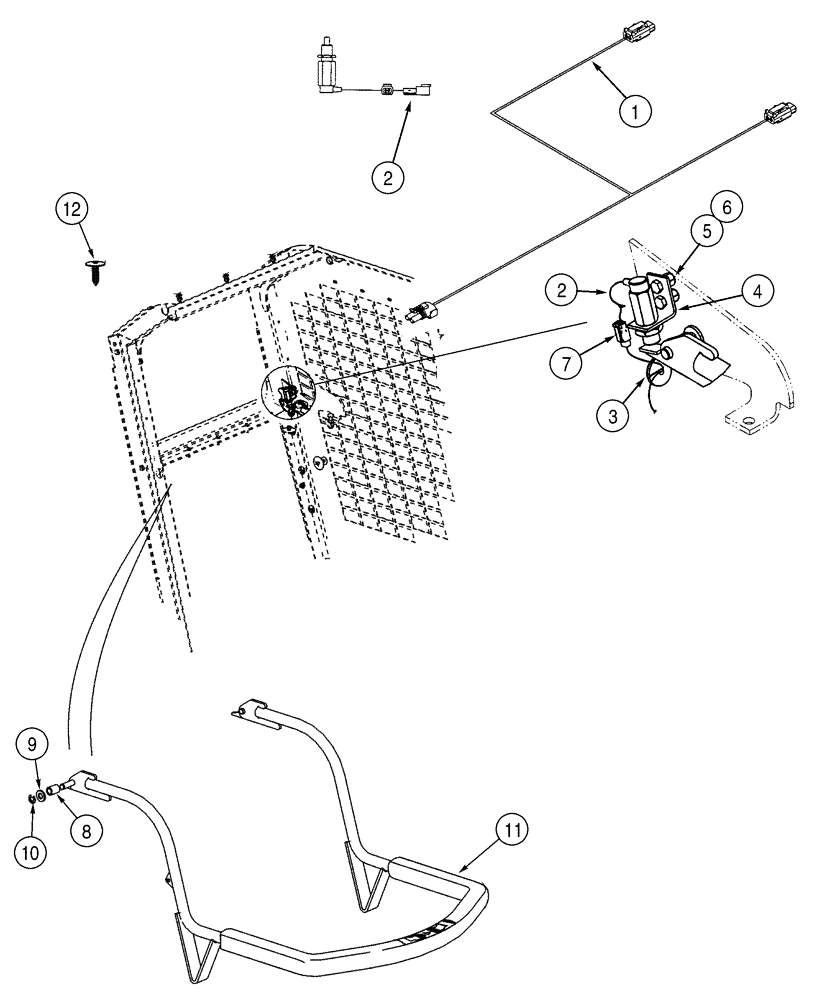

Запчасти Case 90XT (04-20) - HARNESS SEAT BAR, NORTH AMERICA JAF0320050-, EUROPE JAF0274262- (04) - ELECTRICAL SYSTEMS

1

321390A1

HARNESS

Seat Bar, Interlock

1шт.

2

313329A1

SWITCH

Seat Bar, Interlock

2шт.

KIT

1шт.

333743A2

CONNECTION,ELECTRIC

Seat Bar, Consists Of: 2- 13

1шт.

2

313329A1

SWITCH

Seat Bar, Interlock

1шт.

3

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Interlock; No Longer Used, Order 87530614

1шт.

3

87530614

GROMMET

1шт.

4

334243A1

SUPPORT

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

7

337646A1

HARNESS

1шт.

8

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

See Figure 9-35, 9-36

2шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

See Figure 9-35, 9-36

2шт.

10

D143415

SNAP RING,0.50” ID, Klipring

1/2, See Figure 9-35, 9-36

2шт.

11

419844A1

BAR

See Figure 9-35, 9-36

1шт.

12

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

See Figure 9-41

8шт.
